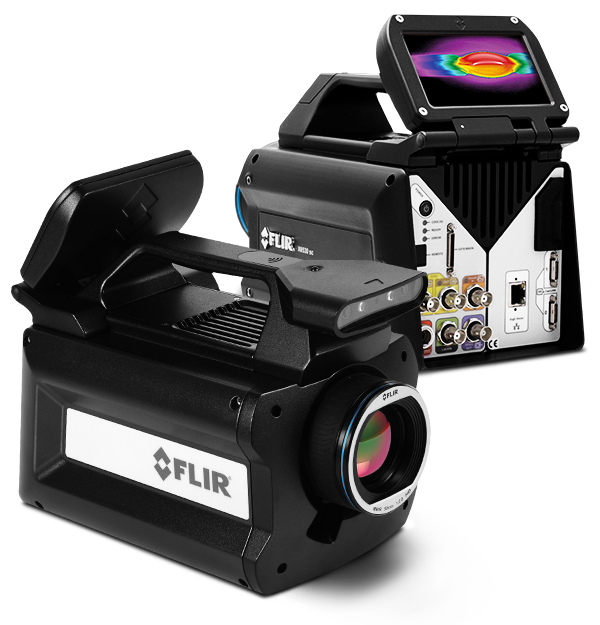

The FLIR X6520sc thermal imaging camera provides superior thermal measurement performance paired with the most advanced connectivity. Whether your research requires short sampling times to capture highspeed processes, or you need concrete spectral information within the MWIR bandwidth, the FLIR X6520sc provides highly-sensitive temperature measurements. In addition, the camera’s state-of-the-art connectivity and intuitive user experience allow researchers to focus on their experiments instead of camera controls.
Specifications
| Highlighted | |
|---|---|
| Resolution | 640 x 512 |
| Detector Pitch | 15 µm |
| Spectral Range | 3.7 – 4.8 µm |
| Detector Type | Mercury Cadmium Telluride (MCT) |
| Camera f_number | f/4.0 |
| Dynamic Range | 14-bit , 16 bits with DRX |
| NETD | <25 mK (18 mK typical) |
| Frame Rate | 146 Hz: 640 x 512 Up to 3699 Hz: 160 x 1 |
| Integration Time | 80 ns to 20,000 µs |
| Standard Temperature Range | 5°C to 150°C |
| Filtering | 4-position motorized, with drift compensation and automatic identification |
| Focus | USL mechanism or manual |
| Imaging & Optical | |
|---|---|
| Analog Palettes | Selectable 8-bit |
| Available Lenses | NA |
| Camera f_number | f/4.0 |
| Close_up Lenses_Microscopes | NA |
| Detector Pitch | 15 µm |
| Detector Type | Mercury Cadmium Telluride (MCT) |
| Digital Data Streaming | Simultaneous Gigabit Ethernet and Camera Link Base / Camera Link Medium |
| Display Overlay | Temperature measurement & scale |
| Dynamic Range | 14-bit , 16 bits with DRX |
| Filtering | 4-position motorized, with drift compensation and automatic identification |
| Focus | USL mechanism or manual |
| Frame Rate | 146 Hz: 640 x 512 Up to 3699 Hz: 160 x 1 |
| HD Video | DVI 1080p |
| Image Analysis | On-camera temperature analysis |
| Image Time Stamp | Internal IRIG-B decoder clock / TSPI accurate time stamp |
| Integration Time | 80 ns to 20,000 µs |
| Motorized Focus Mechanism | Yes |
| NETD | <25 mK (18 mK typical) |
| On Camera Display | Detachable touchscreen LCD display (800 × 480) |
| Operability | >99% |
| Readout | Snapshot Digital (X8400sc/X6580sc) - Snapshot Analog (X6550sc/X6540sc/X6530sc) |
| Readout Modes | Asynchronous Integrate While Read; Asynchronous Integrate Then Read |
| Resolution | 640 x 512 |
| Sensor Cooling | Closed cycle rotary |
| Spectral Range | 3.7 – 4.8 µm |
| Subwindow Modes | User-defined |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1°C or ±1% of Reading |
| Automatic Gain Control | Manual, Linear, ROI |
| Calibration | Custom calibration on request |
| Standard Temperature Range | 5°C to 150°C |
| Communication & Data Storage | |
|---|---|
| Synchronization Modes | IRIG-B; Sync In, Trigger In |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 280 × 150 × 180 mm |
| Weight [without lens] | 5.05 kg |
| Power | |
|---|---|
| Power | 24 VDC |
| Environmental & Certifications | |
|---|---|
| Mounting | UNC 1/4"−20 + 3×M5 threads |
| Operating Temperature Range | -20°C to 50°C |
| Shock and Vibration | Operational 15G, IEC 68-2-29 / operational 2G, IEC 68-2-26 |
Accessories
Resources & Support
User Manual
FLIR X6520sc User Manual
Brochure
Science Camera MCT Detector Brochure A4
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
