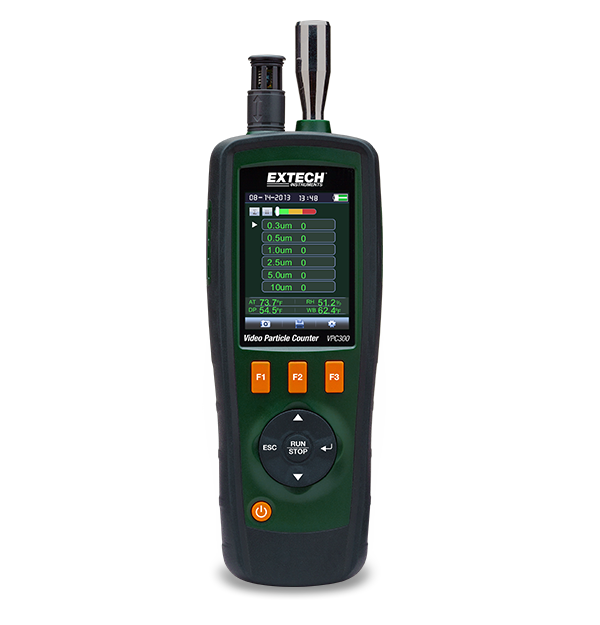

The VPC300 is a Video Particle Counter with built-in Camera. Measures up to 6 channels of particle sizes plus air temperature and relative humidity. Used for capturing videos and photos that are stored onto internal memory or a micros card. The VPC300 can measure up to 6 channels of particle sizes plus air temperature and relative humidity. Use the included software to generate reports with videos, photos and data points. Complete with NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery and a hard, protective case.
Specifications
| General | |
|---|---|
| Air Temperature | -25ºC to 60ºC (-14ºF to 140ºF); Accuracy ±1°C to 2°F |
| Dew Point | 32 to 122°F (0 to 50°C) |
| Max Flow Rate | 0.1 ft³ (2.83 L per min) controlled by internal pump |
| Particle Size | 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm |
| Readout Modes | Cumulative, Differential, Concentration |
| Relative Humidity | 0 to 100% |
| Relative Humidity Basic Accuracy | ±3% |
| Size [L × W × H] | 240 × 75 × 57 mm (9.4 × 3.0 × 2.2 in) |
| Wet Bulb | 33 to 122°F (0 to 50°C) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.4 × 3 × 2.2" (240 × 75 × 57mm) |
| Power | 1 × 7.4V NiMH battery |
| Warranty | 2 years |
| Weight | 1.26lbs (570g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech VPC300 Software v1.6
Software Download
Extech VPC300 Software v2.0
User Manual
Extech VPC300 User Manual
Datasheet
Extech VPC300 Datasheet
Certification
Extech VPC300 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
