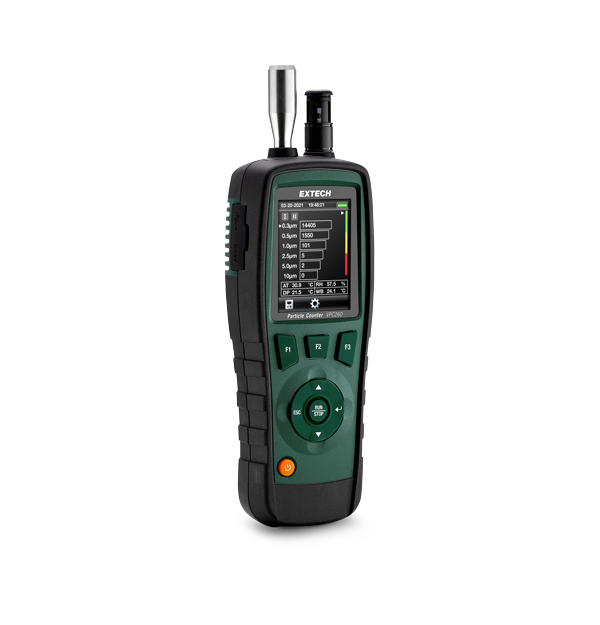

The VPC260 is a 6-channel particle counter for monitoring workplace environmental health and quality. Measure up to 6 channels of particle sizes plus air temperature, relative humidity, dew point, and wet bulb. Check indoor air quality for exhaust, smoke, respirable crystalline silica dust (RCS), airborne combustible dust, and other harmful air pollutants.
Specifications
| General | |
|---|---|
| Air Temperature | 0°C to 50°C (32°F to 122°F); Accuracy: ±1.8°F (±1.0°C) |
| Coincidence Loss | 10% @ 2,000,000 counts per ft³ |
| Counting Efficiency | 50% @ 0.3 µm (100% for particles >0.5 µm) |
| Dew Point | 0°C to 50°C (32°F to 122°F) |
| Max Flow Rate | 0.035 ft³/min (1.0 L/min) controlled by internal pump |
| Particle Size | 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10 µm |
| Readout Modes | Cumulative, Differential, Concentration |
| Relative Humidity | 0 to 100% RH; Accuracy: ±3.5% RH (20% to 80% RH) |
| Size [L × W × H] | 238 mm × 73 mm × 50 mm (9.3 in × 2.8 in × 2.0 in) |
| Storage Capacity | 1000 data sets |
| Wet Bulb | 0°C to 50°C (33°F to 122°F) |
| Additional Details | |
|---|---|
| Certifications | CE, UKCA |
| Display | 2.8” TFT Color LCD Display |
| Power | 9 V DC / 2A 7.4 V lithium-ion battery |
| Warranty | 2 years |
| Weight | 448 g (0.988 lb) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech VPC260 Software
User Manual
Extech VPC260 User Manual
Datasheet
Extech VPC260 Datasheet
User Manual
Extech VPC260 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
