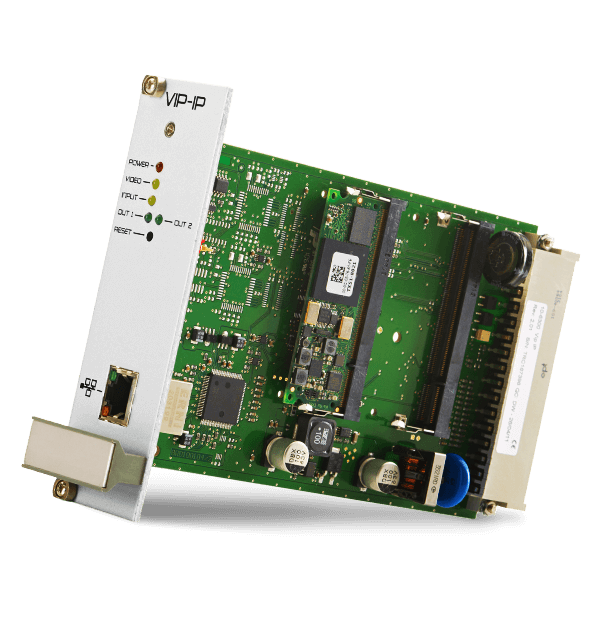

FLIR VIP-IP
Multi-functional video detection boards
The VIP series offers multi-functional Video Image Processing modules for traffic control. VIP boards integrate automatic incident detection, data collection, recording of pre and post incident image sequences and streaming video in one board. VIP modules have been installed for road and tunnel projects all over the world.
Specifications
| System Overview | |
|---|---|
| AID | AID overlay |
| Boards per Rack | 4 (1/2 19" rack) or 8 (19" rack) |
| Description | AID module for IP cameras |
| Communications | |
|---|---|
| Audio | No |
| Communication Standards | SNMP |
| Data | No |
| Digital Inputs | 1 |
| Digital Outputs | 2 |
| Encoding Format | H.264, MPEG-4, MJPEG |
| LAN Connector Type | 10/100 Mbps RJ45 |
| Maximum Streams | Max 4 unicast or multicast |
| Multi_Streaming | Single H.264 or MPEG-4 or MJPEG |
| PTZ control | No |
| Video Input | IP video: VGA, 4CIF or D1 |
| Electrical | |
|---|---|
| Maximum resolution | D1 @ 30 fps |
| MTBF | 200,000 hrs |
| Power | < 4W |
| Stand_Alone Form | Box, 24 V DC (+/- 15%) |
| Environmental | |
|---|---|
| Operating Temperature | -34° to +74°C (-29° to 165°F) |
| Mechanical | |
|---|---|
| Boards per Rack | 4 (1/2 19" rack) or 8 (19" rack) |
| Dimensions | 130 x 41 x 190 mm |
| Weight | 200 g |
