FLIR VIP-3D
Vehicle presence detection board

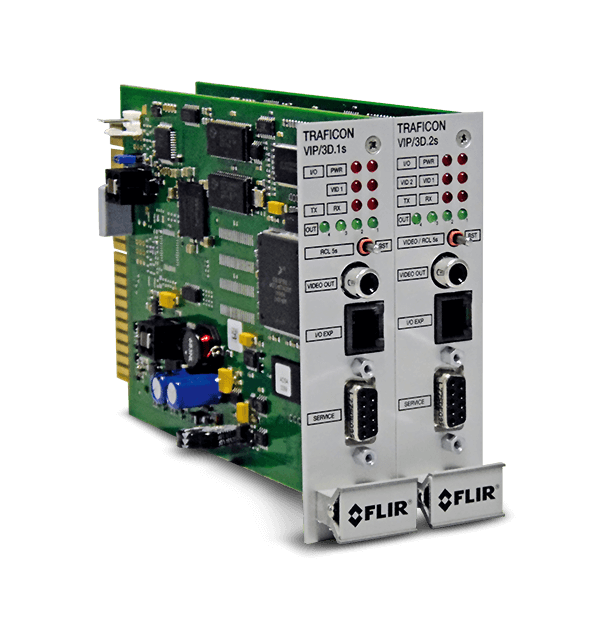

FLIR VIP3D.x is a video detection board that provides vehicle presence information to the intersection controller. FLIR VIP3D.x integrates vehicle presence detection and traffic data collection in one module and provides a powerful solution for intersection control. As a single slot module, VIP3D.x plugs into all standard cabinet racks. The FLIR VIP3D.x module interfaces directly to the controller via cable connected outputs.
Specifications
| System Overview | |
|---|---|
| Detection Zones | FLIR VIP-3D.2: Up to 20 FLIR VIP-3D.1: Up to 24 |
| Communications | |
|---|---|
| Double row 22 pins EDGE [NEMA TS2_1992] connector | Back |
| Output | 4 outputs (open collector, selectable active low or high) Up to 24 outputs/20 inputs via expansion modules |
| Push button | Front for reset/recall |
| RJ11 connector | Front to the expansion modules |
| Serial Port | Front for setup |
| Video Input | 75Ω 1Vpp, PAL or NTSC |
| Video Output | via BNC connector - front |
| Electrical | |
|---|---|
| Consumption | FLIR VIP-3D.2: 200 mA @ 24 V FLIR VIP-3D.1: 160 mA @ 24 V |
| LED | For connection to I/O Expansion modules For the communication status / for the outputs status |
| LED Type | Video in LED |
| Power | 10.8v to 26.5 VDC |
| Environmental | |
|---|---|
| Operating Temperature | -34° to +74°C (-29.2° to 165.2°F) |
| Relative Humidity | 0 to 95% relative humidity - non-condensing |
| Mechanical | |
|---|---|
| Dimensions | 4.5 x 1.1 x 7.0 in (114 x 28 x 178 mm) |
