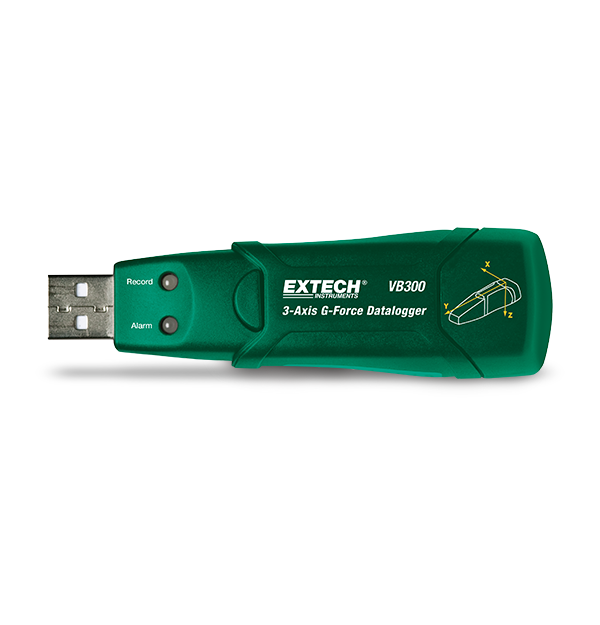

The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.
Specifications
| General | |
|---|---|
| Acceleration | ±18g |
| Acceleration Basic Accuracy | ±0.5g |
| Acceleration Max Resolution | 0.00625g |
| Data Format | Time stamped peak acceleration, average and peak vector sum |
| Datalogging Interval | 500 ms to 24 hours (software) |
| Frequency Bandwidth | 0 to 60Hz |
| Memory | 4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
| Sampling Rate | 200Hz |
| Sensor Type | MEMS semiconductor |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.7 × 1.1 × 0.8" (95 × 28 × 21mm) |
| Power | 1 × 3.6V Lithium battery |
| Warranty | 2 years |
| Weight | 1oz (20g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech VB300 Software
User Manual
Extech VB300 User Manual
Certification
Extech VB300 Declaration of Conformity
Datasheet
Extech VB300 Datasheet
