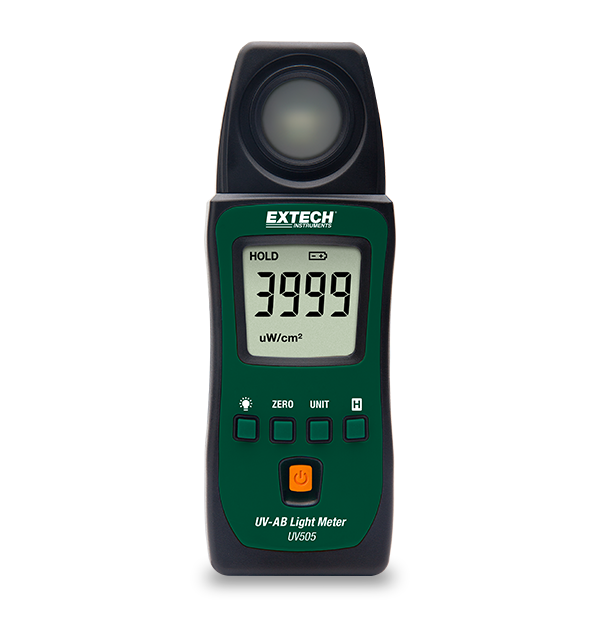

The Extech UV505 Pocket Light Meter measures UV-AB light from natural and artificial light sources. It can be used in outdoor activities, indoor medical testing, laboratory and research, industrial, education, electronics, and forensics/criminology applications. It offers a backlit display, cosine corrected sensor, two selectable ranges, zero function, display hold, and auto power off. Includes a pouch to protect and store your meter.
Specifications
| General | |
|---|---|
| UVA | 1 to 3999 µW/cm², 0.01 to 40 mW/cm² |
| UVA Basic Accuracy | ±5% full scale |
| UVA Max Resolution | 1 µW/cm², 0.01 mW/cm² |
| UVB | 1 to 3999 µW/cm², 0.01 to 40 mW/cm² |
| UVB Basic Accuracy | ±5% full scale |
| UVB Max Resolution | 1 µW/cm², 0.01 mW/cm² |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.2 × 1.9 × 1" (133 × 48 v 23mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 3.2oz (90g) |
