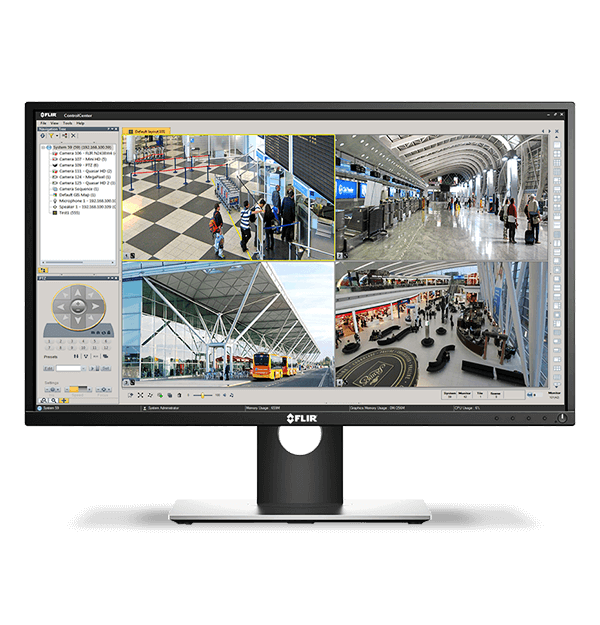

USS Full HD Monitor
24 Inch Full HD Monitor
Designed for Latitude, Horizon and Meridian clients, the USS monitor delivers brilliant display quality at Full HD resolution, making it an ideal choice for a complete FLIR solution.
Specifications
| Cyber Security | |
|---|---|
| Security | Security lock slot |
| General | |
|---|---|
| Active Display Area | Horizontal: 527.04 mm (20.75 inches) Vertical: 296.46 mm (11.67 inches) |
| Aspect ratio | 16:9 |
| Backlight | LED |
| Brightness | 250 cd/m² |
| Color Depth | 16.7 million colors |
| Color Gamut | 0.82 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 4 million:1 |
| Panel Technology | In-plane switching, anti-glare with 3H hardness |
| Response Time | 6 ms (gray to gray) |
| Stand | Height adjustable stand, tilt, swivel, pivot and built-in cable management |
| VESA Mounting Support | Quick Release feature (100 mm x 100 mm) |
| Viewable Image Size | Diagonal: 60.45 cm (23.8 inches) |
| Viewing Angle | Vertical/Horizontal 178°/178° |
| Warranty | 3 Years |
| Measurement & Analysis | |
|---|---|
| Maximum resolution | Full HD Resolution maximizes detail captured by the cameras |
| System Integration | |
|---|---|
| AC Input | 100 to 240 VAC, 50 or 60 Hz ± 3Hz, 1.5 A |
| Connector | VGA | HDMI (1.4) | DP (1.2) | 3 USB 3.0 (2 down, 1 up) | 2 USB 2.0 |
| Thermal Camera | |
|---|---|
| Aspect ratio | 16:9 |
| Pixel Pitch | 0.275 mm x 0.275 mm |
| Visible Camera | |
|---|---|
| Aspect ratio | 16:9 |
