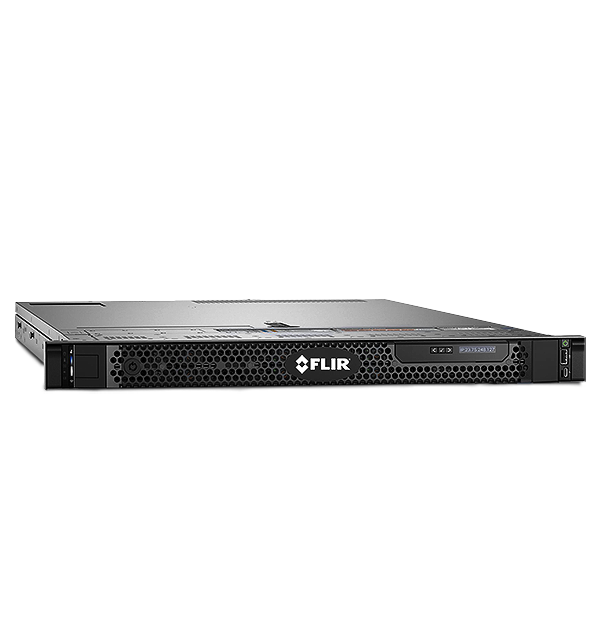

USS Enterprise 1U Server
High-Performance Server Optimized for United VMS Server Solutions
The FLIR Universal Systems Solutions Enterprise is an ideal multi-purpose rack server, introducing a new level of performance for video surveillance applications, managing up to 10,000 cameras per Directory. Designed to address the requirements of IT environments, the server is pre-loaded with system management capabilities, excellent system scalability, redundancy and value in a compact chassis.
Specifications
| Compliance & Certifications | |
|---|---|
| Certifications | Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC |
| General | |
|---|---|
| Chipset | Intel C741 |
| Dimensions | 86.8 × 434 × 678.8 mm (3.41 × 17.08 × 26.72 in) |
| Form Factor | 1 U rack |
| Memory | USS-ENT-00N0-00: 16 GB RDIMM RAM USS-ENT-00X0-00: 32 GB RDIMM RAM |
| Operating System | Microsoft Windows Server 2019 Embedded or Server 2022 |
| OS Drive | BOSS-N1 controller card + with 2 M.2 480 GB (RAID 1) |
| Power Supply | Dual, Hot-plug, Power Supply Redundant (1+1), 800 W, Mixed Mode, NAF |
| Processor | USS-ENT-00N0-00: Enterprise Eight-core Intel® Xeon® Silver processor USS-ENT-00X0-00: Dual Enterprise Eight-core Intel® Xeon® Gold processor |
| Rack Support | ReadyRails™ II sliding rails |
| RAID Controller | Diskless configuration (no Controller) |
| System Management | iDRAC9 Express (Enterprise License Upgrade Option) |
| Warranty | 5-year ProSupport and Next Business Day On-site Service (upgrades available) |
| Weight | Max: 33.1 kg (72.91 lb) |
| System Integration | |
|---|---|
| Communication | Broadcom 57454 Quad Port 10GbE BASE-T Adapter, PCIe Low Profile |
| I_O Slots | Up to 4 PCIe slots |
| Processor Sockets | 2 |
| USB Peripherals | 2 x 3.0 and 2 x 2.0 |
| USB Port | Front Ports 1 × USB 2.0 Rear Ports 1 × USB 2.0, 1 × USB 3.0 Internal Ports 1 × USB 3.0 |
| Video & Recording | |
|---|---|
| Hard Drive Bay | 4 hard drive chassis |
| Hard Drive Storage | Enterprise class, Hot-swap HDDS |
Resources & Support
Datasheet
FLIR USS Enterprise 1 en_US Letter 12.23
Brochure
Universal System Solutions Advantage Brochure
Warranty
FLIR USS Products - 5-Year Warranty
User Manual
FLIR Cyber Hardening Guide
Application Story
City Deploys Flir Video System for Safety
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
