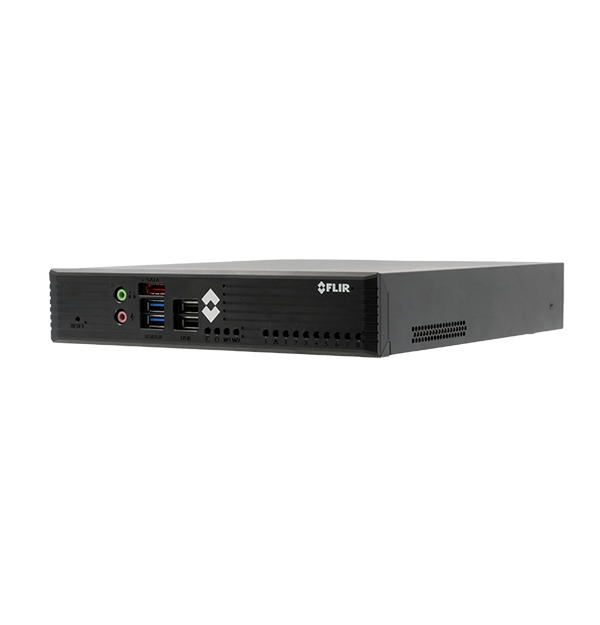

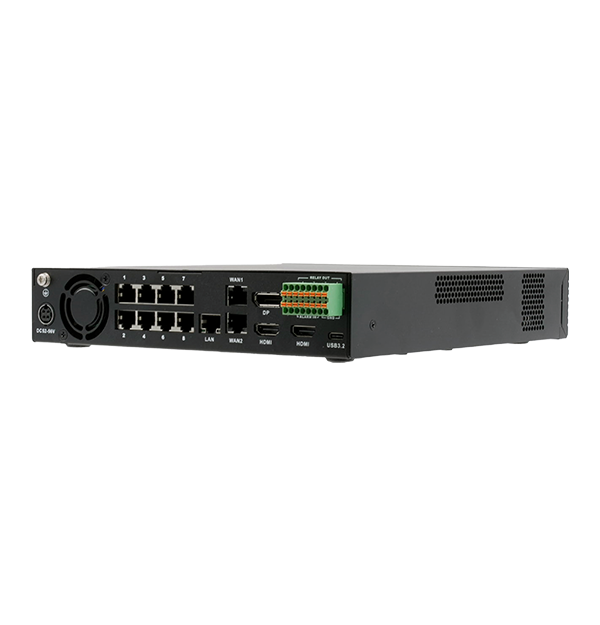

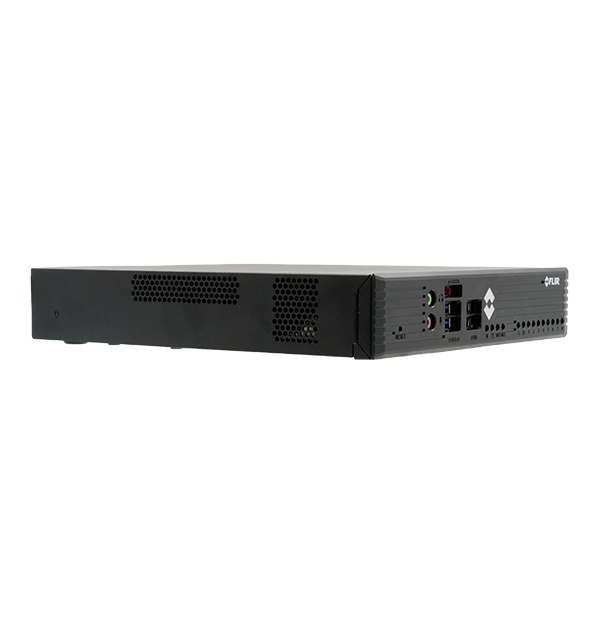

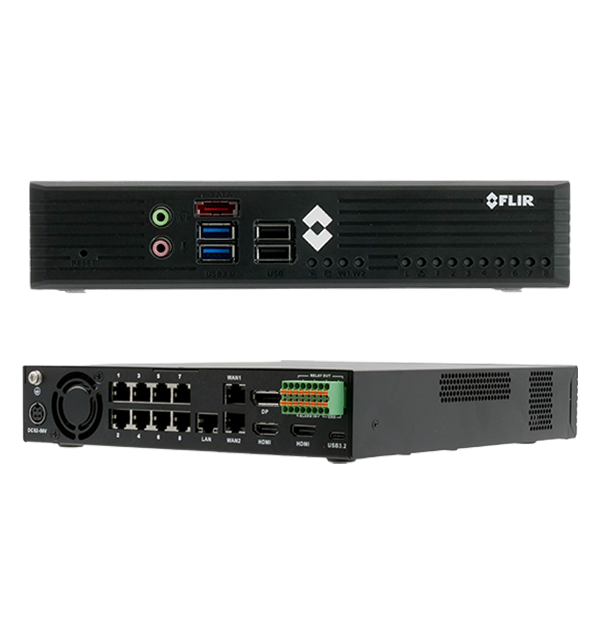

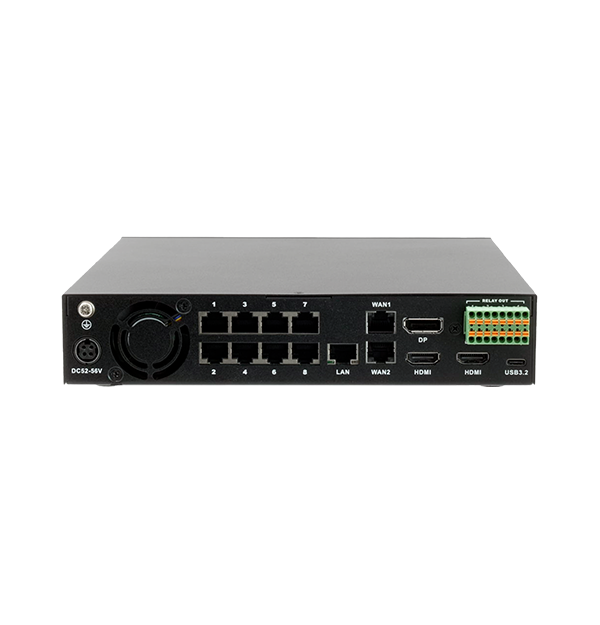

USS Edge Appliance
Compact IP Video Appliance with Built-in PoE
The FLIR USS Edge Appliance is a compact video appliance ideal for small to medium-sized security deployments. It comes equipped with an eight-port Power over Ethernet (PoE) switch and can hold from 2 TB up to 20 TB of video storage. The built-in installer simplifies setup for the FLIR UVMS* (Video Management Software) and reduces installation time. The USS Edge Appliance is an enterprise-grade solution that can be used as an independent VMS or to extend security systems across multiple locations.
*Video Management software is sold separately, please visit https://www.flir.com/browse/security/video-management-systems/ to explore the available options.
• Reduce installation time with easy-to-use installation interface
• Small form factor reduces power consumption and environmental footprint
• Reduce the need for 8-point PoE switch
• Simple design allows technicians to quickly install and perform routine maintenance
• Easy-to-use interface helps solve problems faster
• Protected by a three-year warranty
• CE, FCC, LVD, and UL (optional) - Certified
Specifications
| Compliance & Certifications | |
|---|---|
| Certifications | CE/FCC/LVD (Standard, UL will be charged additionally) |
| Environmental | |
|---|---|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| General | |
|---|---|
| Dimensions | 43.9 × 220 × 244.3 mm (1.72 × 8.66 × 9.62 in) |
| Form Factor | Small and compact Form Factor with 8-port POE switch |
| Memory | USS-EDGE-G5-02TB, USS-EDGE-G5-04TB: 16 GB DDR5 USS-EDGE-G5-08TB, USS-EDGE-G5-12TB, USS-EDGE-G5-16TB, USS-EDGE-G5-20TB: 32 GB DDR5 |
| Monitoring | USS-EDGE-G5-02TB, USS-EDGE-G5-04TB, USS-EDGE-G5-08TB: Up to 220 FPS at 1080p USS-EDGE-G5-12TB, USS-EDGE-G5-16TB, USS-EDGE-G5-20TB: Up to 280 FPS at 1080p |
| Operating System | Microsoft Windows 10 IoT Enterprise 64 bit |
| PoE | 8 × 10/100 RJ45 ports |
| Power Consumption | 80 W min, 200 W max, POE Power 120 W |
| Power Supply | 200 W; 100 to 240 VAC, 50/60 Hz, Single non-redundant power supply |
| Processor | USS-EDGE-G5-02TB, USS-EDGE-G5-04TB: Alder Lake I3-12100E USS-EDGE-G5-08TB, USS-EDGE-G5-12TB, USS-EDGE-G5-16TB, USS-EDGE-G5-20TB: Alder Lake I5-12500E |
| Warranty | 3 years |
| Weight | max. weight: 2.5 kg (5.5 lb) |
| System Integration | |
|---|---|
| Audio | Via HDMI or 3.5 mm audio jack 1 x Mic-in / 1 x Headphone-out |
| Networking | Dual NIC, 2 × 10/100/1000 Mbps RJ45 |
| USB Port | USB2.0 x2; USB3.2 x2; (front) USB3.2 Type-C x1 (rear) 1x eSata |
| Video & Recording | |
|---|---|
| Hard Drive Storage | USS-EDGE-G5-02TB: 2 TB 3.5 in SATA USS-EDGE-G5-04TB: 4 TB 3.5 in SATA USS-EDGE-G5-08TB: 8 TB 3.5 in SATA USS-EDGE-G5-12TB: 12 TB 3.5 in SATA USS-EDGE-G5-16TB: 16 TB 3.5 in SATA USS-EDGE-G5-20TB: 20 TB 3.5 in SATA |
| Recording | USS-EDGE-G5-02TB, USS-EDGE-G5-04TB: 80 Mbps USS-EDGE-G5-08TB, USS-EDGE-G5-12TB, USS-EDGE-G5-16TB, USS-EDGE-G5-20TB: 150 Mbps |
