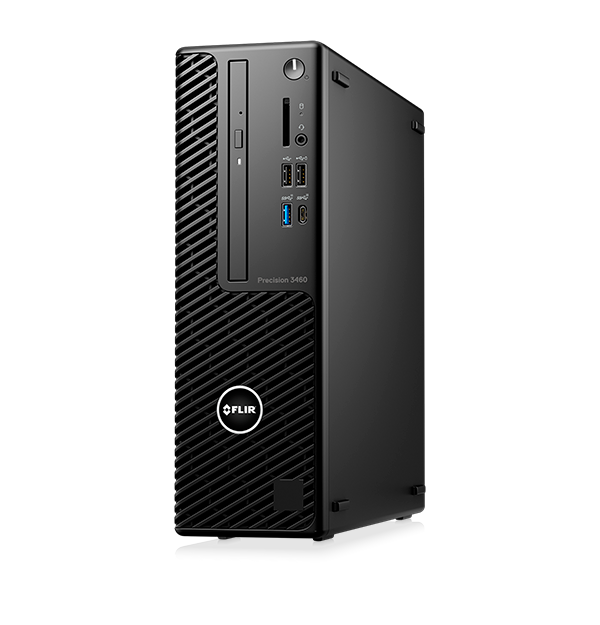

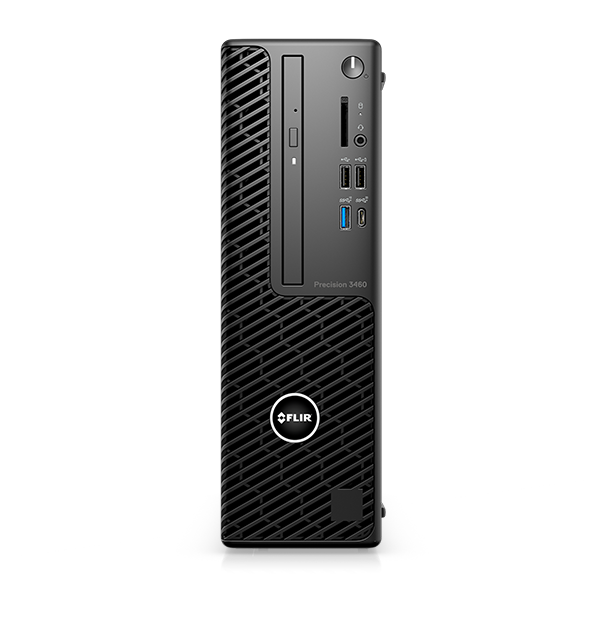

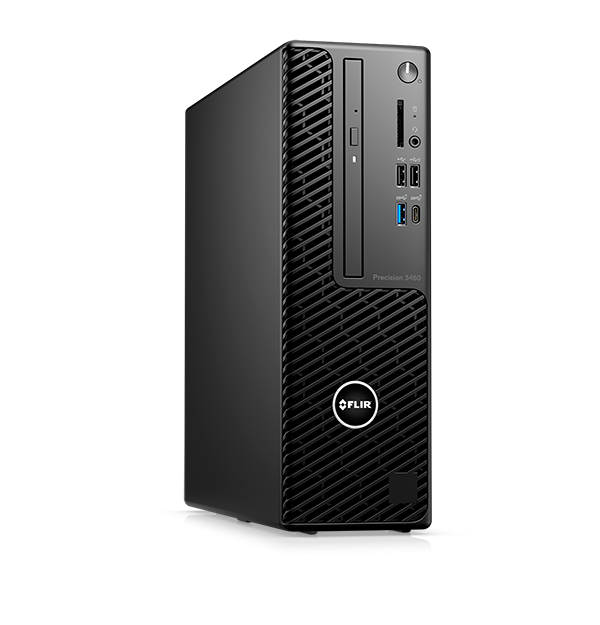

USS Client Workstation
High-performance client workstation optimized for United VMS monitoring operations
The FLIR USS Client is a high-performing and efficient workstation designed to address the needs of security operation centers - whether basic or highly advanced - and is optimized for FLIR United VMS products. It is also designed for dual/quad monitor configurations with full HD graphics.
Specifications
| Compliance & Certifications | |
|---|---|
| Certifications | Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC, KC |
| General | |
|---|---|
| Dimensions | H × W × D : 290 × 93 × 292 mm (11.42 × 3.65 × 11.5 in) |
| Form Factor | Small form factor |
| Memory | 16 GB (2 × 8 GB) DDR5 4800 MHz |
| Monitoring | USS Client Workstation, Dual Monitor: Up to 400 fps 1080p USS Client Workstation, Quad Monitor: Up to 500 fps 1080p USS Client Workstation, Quad Monitor - High Performance: Up to 600 fps 1080p |
| Operating System | Microsoft® Windows 10 Professional (x64) |
| Optical Drive | 8x DVD±RW 9.5 mm Slimline optical disk drive |
| Peripherals | QuietKey USB keyboard and optical scroll USB mouse |
| Power Supply | 300 W up to 92% efficient (80 Plus Platinum) PSU (System Fan), 100~240 VAC 50/60 Hz (auto) |
| Processor | USS Client Workstation, Dual Monitor: Enterprise Quad-core Intel® Core i3-10105 USS Client Workstation, Quad Monitor: Intel® Core i5-12500 processor 3.0 GHz to 4.6 GHz USS Client Workstation, Quad Monitor - High Performance: Intel® Core i7-12700 processor, 12 Core (8P+4E), 2.1 GHz to 4.9 GHz, 65 W |
| Warranty | 3-year ProSupport and Next Business Day On-site Service (upgrades available) |
| Weight | 5.26 kg (11.57 lb) |
| System Integration | |
|---|---|
| Audio Controller | Via HDMI or 3.5 mm audio jack 1 x Mic-in / 1 x Headphone-out |
| Communication | Integrated Gigabit Ethernet controller |
| Display Ports | USS Client Workstation, Dual Monitor: 2 display ports USS Client Workstation, Quad Monitor, USS Client Workstation, Quad Monitor - High Performance: 2x display ports, 3x mini display ports |

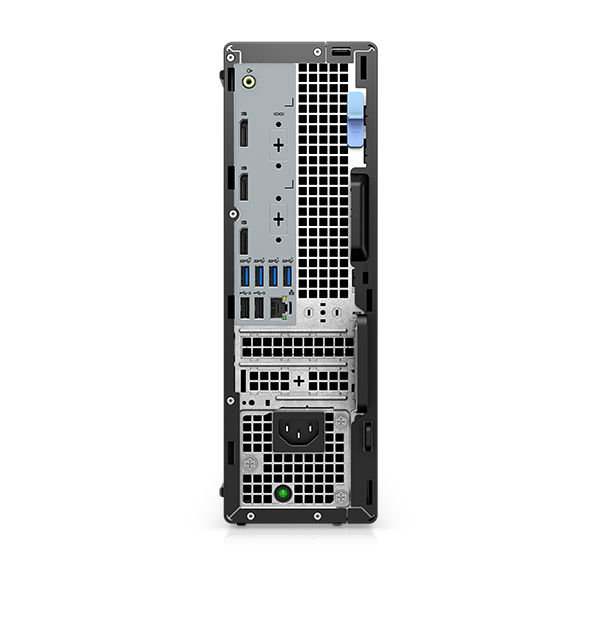

| I_O Ports | RJ45, USB 2.0 port, USB 2.0 port PowerShare, USB 3.2 Gen 2 port, USB 3.2 Gen 2×2 capable Type-C® port, Universal audio port, Serial/PS2 port SD 4.0 card slot (optional) |
| I_O Slots | SD 4.0 card slot (optional), half-height Gen 4 PCIe x16 slot, half-height Gen 3 PCIe x4 slot ,M.2 2230 slot for Wi-Fi and Bluetooth® card, M.2 2280 slot for solid-state drive (2), M.2 2230/2280 for solid-state drive (3), SATA 3.0 slot for 3.5/2.5-inch hard drive |
| Networking | Dual NIC, 2x 10/100/1000 Mbps RJ-45 |
| Video & Recording | |
|---|---|
| Hard Drive | M.2 256 GB PCIe NVMe Class 35 Solid State Drive |
Resources & Support
Datasheet
FLIR USS Client Workstation Datasheet
Brochure
Universal System Solutions Advantage Brochure
Warranty
FLIR USS Products - 5-Year Warranty
User Manual
FLIR Cyber Hardening Guide
Application Story
City Deploys Flir Video System for Safety
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
