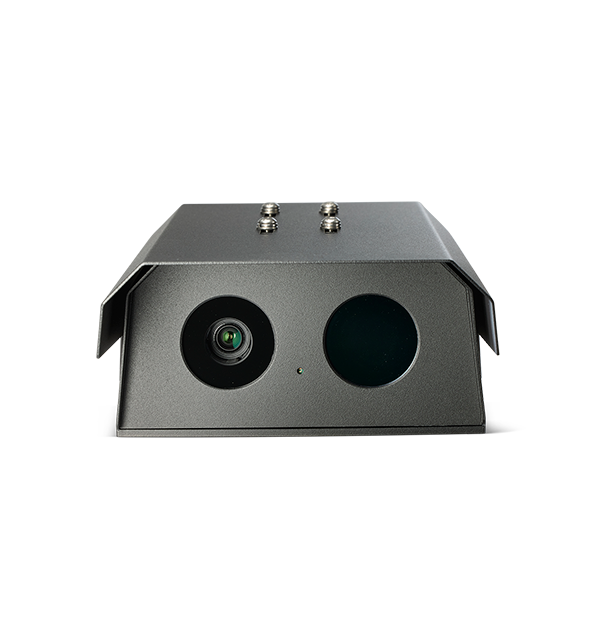

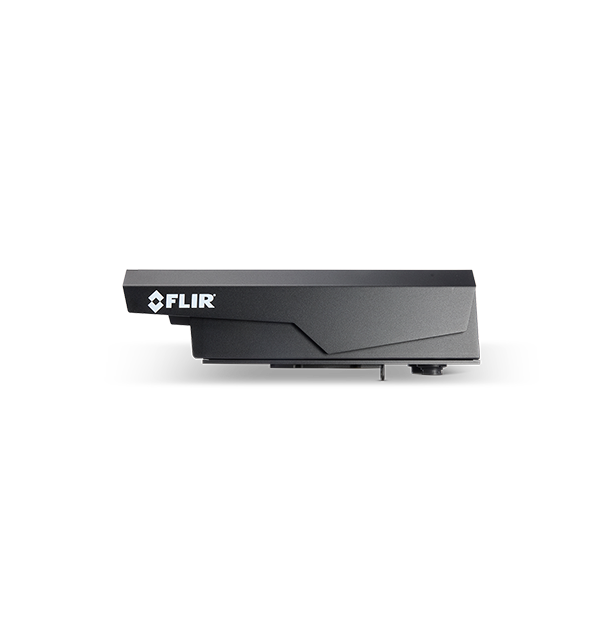

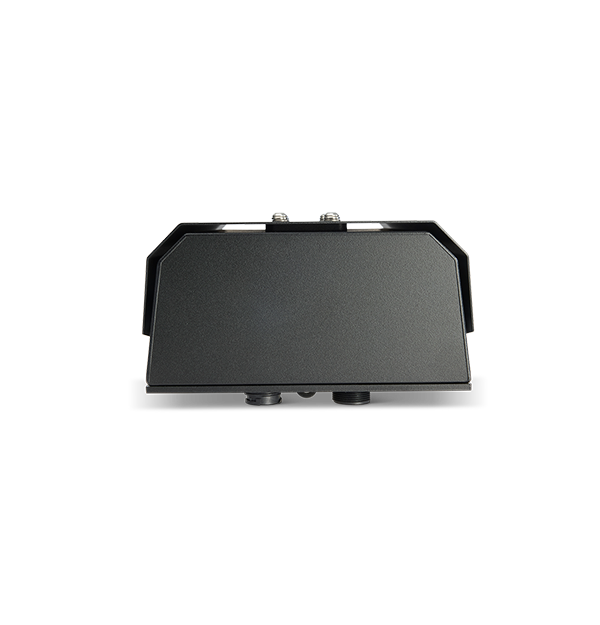

TrafiSense Dual AI
Premium Dual Sensor Solution with Embedded AI Deep Learning
Product Variations
TrafiSense Dual AI combines best-in-class thermal and visual imaging technology with advanced, deep learning-enabled video analytics for safe, reliable classification of road users. This next-generation solution features FLIR’s proven traffic video analytics for advanced intersection control—now improved with deep learning and patented 3D tracking capabilities. Capable of tracking multiple objects, effectively controlling intersections, and gathering detailed traffic data to integrate with Acyclica, TrafiSense Dual AI sets a new standard for developing safer, more efficient cities.
Accurately tracks position, speed, and direction of multiple vehicles using integrated, edge-based AI deep learning
Detects vulnerable road users and vehicles through thermal imaging, even in challenging lighting and weather conditions
Generate sophisticated reports with Acyclica, including heatmaps and turning movement counts, to identify bottlenecks.
Specifications
| System Overview | |
|---|---|
| Detection Functionalities | Conditional vehicle presence for each class Turning movement count Queue occupancy Wrong way drivers PSH (Position, Speed & Heading) - optional API License ETA (Estimated Time of Arrival) |
| Communications | |
|---|---|
| Outputs | 1x NO, 1x NC |
| Electrical | |
|---|---|
| Power Consumption | 17 W heater off (normal operation); 22 W heater on |
| Environmental | |
|---|---|
| Humidity | 0% to 100%, no condensation |
| Operating Temperature | Continuous: -40°C to 74°C/-40°F to 165°F (sheltered, air temp) |
| Shock_vibration | NEMA TS2 specs |
| Imaging & Optical | |
|---|---|
| Detector Type | Focal Plane Array (FPA), uncooled vanadium oxide microbolometer |
| Effective Pixels | 3840 × 2160 , 8 MP (4K) |
| Focal Length | 6 mm to 22 mm |
| Image Sensor | 1/1.8" CMOS |
| Spectral Range | 7.5 to 13.5 µm |
| Thermal Resolution | 640 × 512 (fast) |
| Mechanical | |
|---|---|
| Bracket | Combined wall/pole/ceiling/curved wall; compatible with off-the-shelf (Pelco) brackets |
