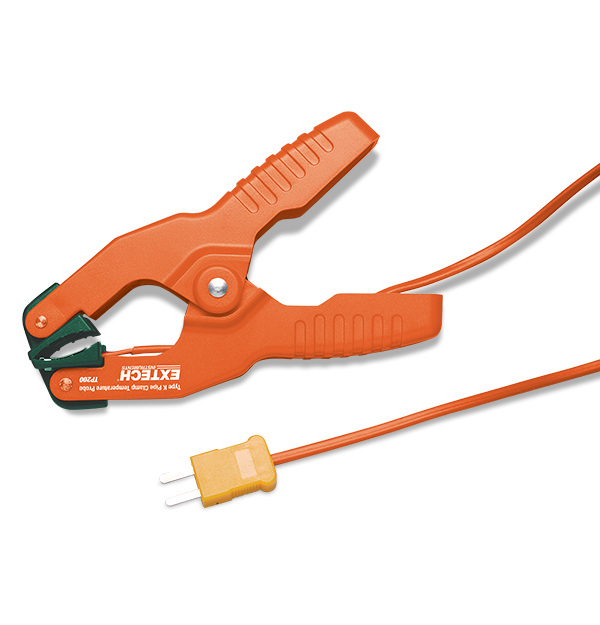

The Extech TP200 Type-K Pipe Clamp Temperature Probe produces a hands-free, super heat and sub cooling temperature measurement. The spring-loaded jaw ensures a secure grip on pipes from 6.35 mm (0.25 in) to 38 mm (1.5 in) in diameter. This probe can be used with any thermometer or multimeter with a Type-K thermocouple input. The measurement range is from -20°C to 93°C (-4°F to 200°F) with and accuracy of ±1.8°C (3.6°F). The TP200 comes complete with an attached 0.9 mm (36 in) cable and a Type-K connector.
Specifications
| General | |
|---|---|
| Cable Length | 36" (0.9m) |
| Pipe Size | 0.25" (6.35mm) to 1.5" (38mm) diameter |
| Sensor Type | Type K curved thermocouple element |
| Temperature [Type K] Max Resolution | -20 to 93 °C (-4 to 200 °F) |
| Temperature [Type N] | ±5% full scale |
| Additional Details | |
|---|---|
| Certifications | CE |
| Warranty | 1/2 year |
Resources & Support
User Manual
Extech TP200 User Manual
Datasheet
Extech TP200 Datasheet
