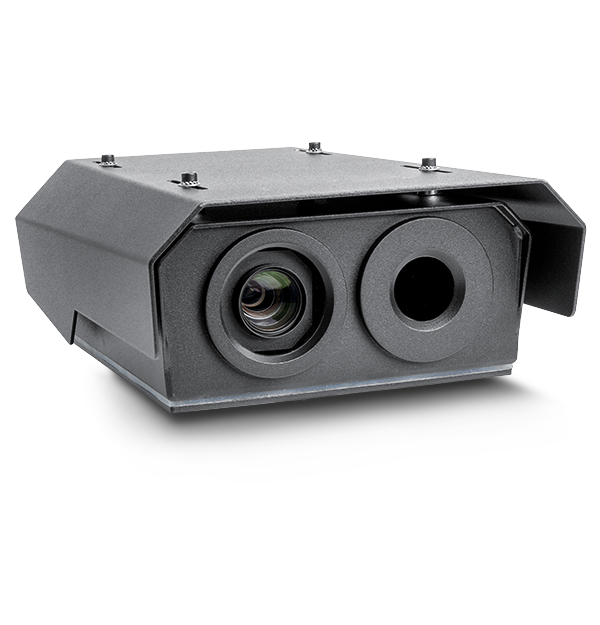

TrafiSense2 Dual
Dual-Vision Sensor for Intersection Control and Safety
Product Variations
FLIR TrafiSense2 Dual combines best-in-class thermal and visual imaging technology with advanced video analytics to provide vehicle and bicycle presence detection at signalized intersections, day and night. Thermal imaging lets traffic operators see in total darkness and inclement weather. The daylight camera offers additional visual verification for such incidents as wrong-way drivers and animal crossings. In addition, FLIR's analytics capture accurate traffic data, making FLIR TrafiSense2 Dual ideal for real-time traffic management in urban environments.
Optimize Traffic Flow at Urban Intersections
FLIR TrafiSense2 Dual offers 24/7 imaging performance, regardless of weather conditions.
Provides vehicle and bicycle presence detection and data collection.
Detects hazards, such as wrong-way drivers or animals crossing roadway.
Specifications
| System Overview | |
|---|---|
| Detection Functionalities | Vehicle/bike/pedestrian presence & counting, traffic data, wrong way driver, wildlife |
| Number of Detection Zones | 24 vehicle presence zones, 8 bike presence regions, 6 traffic data zones, 6 wrong way driver zones, 4 wildlife detection regions |
| Communications | |
|---|---|
| Broadband over Power Line [BPL] | To connect to TI BPL2 EDGE interface for communications of output state events, for configuration, and for monitoring (streaming thermal and/or visual video) |
| Compression | H.264, MPEG-4, MJPEG (dual stream) |
| Configuration | Web interface |
| Serial | When connected as BPL: 64 output states via TI BPL2 EDGE interface and via PIM module (SDLC to traffic light controller) |
| WiFi | To connect to laptop/tablet/smartphone for configuration |
| Electrical | |
|---|---|
| Contact Closures | When connected as PoE: 2 direct, or 2 via FLIR PoE ETH interface (PN 10-7320), When connected as BPL: 4 for TI BPL2 EDGE interface (PN 10-7013), 20 extra outputs via 4I/O USB expansion boards (PN 10-4675) |
| Current Consumption | <580mA @ 24VDC (< 200mA @ 24VDC peak at start-up) |
| FCC | FCC part 15 class A |
| Input Power | 12-42VAC, 12-48VDC (when connected as PoE, use 48VDC) |
| PoE | To connect to FLIR PoE Interface for communications of output state events, for providing 2 outputs (1N/O, 1N/C), for configuration, and for monitoring (streaming thermal and/or visual video) |
| Power Consumption | ≤ 14W |
| Environmental | |
|---|---|
| EU Directives | EMC 2014/30/EU |
| Protection Grade | Housing = IP68, Connectors = IP67 |
| RoHS | 2011-65-EU |
| Shock and Vibration | NEMA TS2 |
| Temperature Range | From -34°C to +74°C (-29°F to 165°F) |
| Imaging & Optical | |
|---|---|
| Field of View | TrafiSense Dual 625: Horizontal: 25° Vertical: 20° TrafiSense Dual 632: Horizontal: 32° Vertical: 26° TrafiSense Dual 645: Horizontal: 45° Vertical: 37° TrafiSense Dual 669: Horizontal: 69° Vertical: 56° TrafiSense Dual 690: Horizontal: 90° Vertical: 69° |
| FOV_Horizontal | TrafiSense Dual 625: Thermal: 25°; Visual: 5-54° (varifocal) TrafiSense Dual 632: Thermal: 32°; Visual: 5-54° (varifocal) TrafiSense Dual 645: Thermal: 45°; Visual: 5-54° (varifocal) TrafiSense Dual 669: Thermal: 69°; Visual: 30-93° (varifocal) TrafiSense Dual 690: Thermal: 90°; Visual: 30-93° (varifocal) |
| Frame Rate | Thermal: 30 FPS; Visible: 25 FPS |
| Resolution | Thermal: VGA
Visible: HD (720p) |
| Type | Long wave Infrared (7 – 14 µm) |
| Mechanical | |
|---|---|
| Dimensions [excl. mounting bracket] | 22cm x 17.5cm x 8cm (8.65in x 6.89in x 3.15in) |
| Material | All weatherproof (UV-resistant) |
| Sunshield | Integrated |
