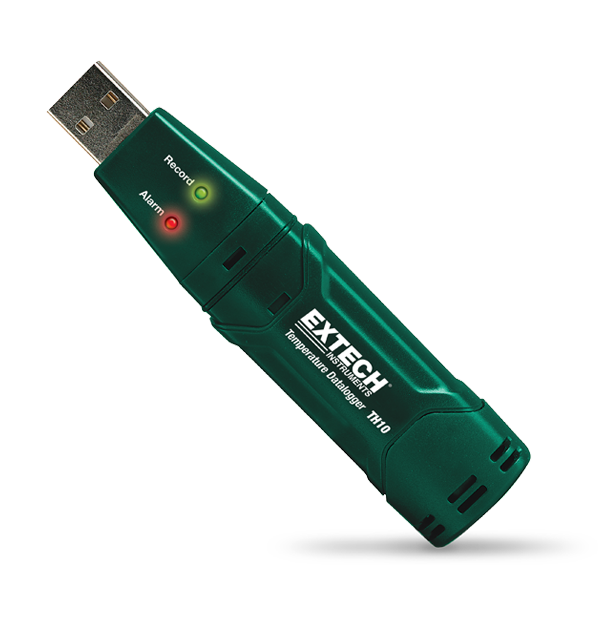

Featuring a temperature range of -40 to 158°F (-40 to 70°C) with an accuracy of ±1°C/1.8°F, the Extech TH10 captures and stores up to 32,000 temperature readings. Users can select data sampling rates of 2s, 5s, 10s, 30s, 1min, 5min, 10min, 30min, 1hr, 2hr, 3hr, 6hr, 12hr and 24hr. The TH10 also has user-programmable high/low alarm thresholds and status indication via red/yellow and green LEDs. Comes with a 3.6-volt lithium battery, a protective USB cap, a mounting bracket, Windows compatible software for analysis, and user manual.
Specifications
| General | |
|---|---|
| Datalogging Interval | 2 seconds to 24 hours |
| Memory | 32,000 points |
| Temperature [Air] | -40 to 158°F (-40 to 70°C) |
| Temperature [Air] Basic Accuracy | ±1.8°F/±1.0°C @ 14 to 104°F/-10 to 40°C; ±3.6°F/±2.0°C all other ranges |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.1 × 1.1 × 0.9" (130 × 30 × 25mm) |
| Power | 1 × 3.6V Lithium battery |
| Warranty | 2 years |
| Weight | 1oz (20g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech TH10 Software
Certification
Extech TH10 Declaration of Conformity
User Manual
Extech TH10 User Manual
Datasheet
Extech TH10 Datasheet
