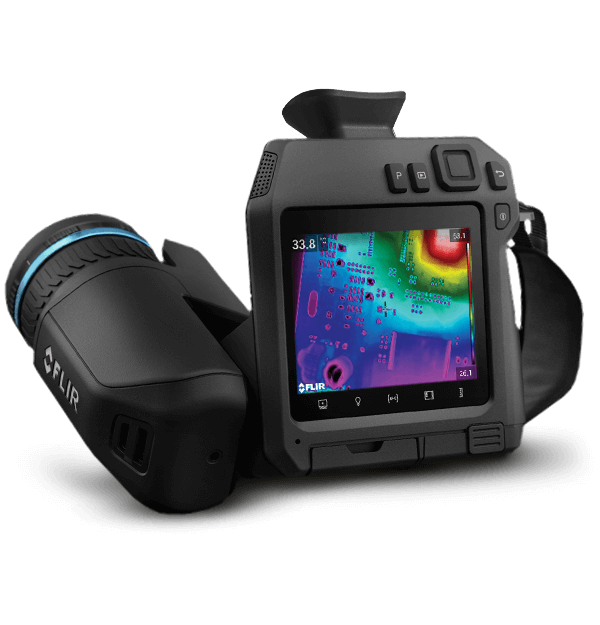

FLIR T865 (Science)
High-Performance Handheld Infrared Camera
Product Variations
The FLIR T865 infrared camera provides ultimate flexibility and portability for research and science applications, allowing you to collect meaningful thermal data whether the camera is handheld or mounted. With high-performance features including temperature measurements down to -40°C and accuracy as good as ±1°C / ±1%, you'll get reliable temperature measurements every time. FLIR UltraMax® and MSX® (Multi-spectral Dynamic Imaging) provide exceptional image quality and measurement capabilities. The optional Macro Mode allows you to quickly switch from wide angle to close-up analysis without changing the lens. Robust on-board analysis and the ability to record fully radiometric movie files to a removable SD card allow users to save thermal data in nearly any environment, or expand your data analysis capabilities with powerful FLIR Research Studio software. With a streamlined, intuitive user interface and unique feature set, users at all levels can effortlessly record and evaluate thermal data from multiple FLIR cameras and recorded sources simultaneously.
Accurately measure a wide range of temperatures and maximize the number of pixels on targets regardless of size or distance from the camera.
Collect meaningful thermal data in nearly any situation with flexible connectivity - whether the camera is handheld or mounted.
Eliminate the need for complex test set-ups when performing thermal analysis and start testing sooner.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 × 480 pixels |
| Spectral Range | 7.5 - 14.0 µm |
| f number | 1.5 |
| Thermal Sensitivity_NETD | T865 14° (Science): <50 mK at 30°C (14° lens) T865 24° (Science): <40 mK @ 30°C (24° lens) T865 42° (Science): <30 mK @ 30°C (42° lens) T865 24° + 14° (Science): <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) T865 24° + 42° (Science): <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens) T865 24°, 14° + 42° (Science): <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) T865 42° + 14° (Science): <30 mK at 30°C (42° lens), <50 mK at 30°C (14° lens) |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Imaging & Optical | |
|---|---|
| Color palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Digital Zoom | 1-8x continuous |
| f number | 1.5 |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Image Frequency | 30 Hz |
| IR Resolution | 640 × 480 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 1.0 m |
| Non_radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture_in_Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spectral Range | 7.5 - 14.0 µm |
| Thermal Sensitivity_NETD | T865 14° (Science): <50 mK at 30°C (14° lens) T865 24° (Science): <40 mK @ 30°C (24° lens) T865 42° (Science): <30 mK @ 30°C (42° lens) T865 24° + 14° (Science): <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) T865 24° + 42° (Science): <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens) T865 24°, 14° + 42° (Science): <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) T865 42° + 14° (Science): <30 mK at 30°C (42° lens), <50 mK at 30°C (14° lens) |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR reporting software. |
| Viewfinder | Yes |
| Measurement & Analysis | |
|---|---|
| Accuracy | T865 14° (Science): ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): –40 to 100°C (–40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F)
T865 24° (Science): ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): –40 to 100°C (–40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F) T865 42° (Science): ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F) of reading, ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F),±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F), ±3%: 1800 to 2000°C (3272 to 3632°F) with 42° lens T865 24° + 14° (Science): ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F) of reading, ±2°C (±3.6°F) of reading at all other temperature ranges T865 24° + 42° (Science): ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F) of reading, ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F), ±3%: 1800 to 2000°C (3272 to 3632°F) with 42° lens T865 24°, 14° + 42° (Science): ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F) of reading,±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F, ±3%: 1800 to 2000°C (3272 to 3632°F) with 42° lens T865 42° + 14° (Science): ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F) of reading, ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F), ±3%: 1800 to 2000°C (3272 to 3632°F) with 42° lens |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -40°C to 120°C (-40°F to 248°F); 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F) |
| Spot Meter | 10 ea. in live mode |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Image File Format | Standard JPEG with measurement data included |
| Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 sec to 24 hrs |
| Video Out | DisplayPort over USB Type-C |
| General | |
|---|---|
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C) |
| User Interface | |
|---|---|
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Power | |
|---|---|
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera or on separate charger |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
