The FLIR T530 has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180° rotating lens platform and a bright 4" LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly. With on-board Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro. Together these systems will help you record temperature data and imagery in a logical sequence for faster troubleshooting and repair. Pair the T530 with a FLIR FlexView® dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning without changing the lens.
All FLIR T-Series cameras now come with a free credit to attend a FLIR Academy training session—a $399 value (details below).
Comfort, Efficiency, And Performance
Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.

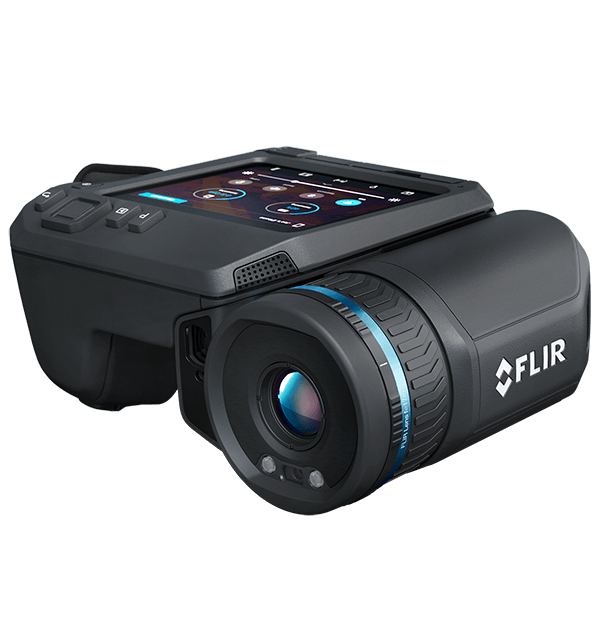

The T530's optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.

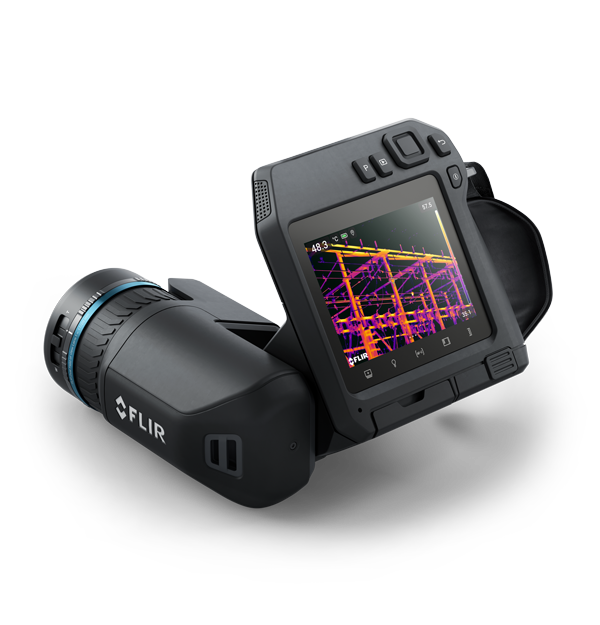

The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 (76,800 pixels) |
| Thermal Sensitivity_NETD | <30 mK, 42° @ +30°C (+86°F) <40 mK, 24° @ +30°C (+86°F) <50 mK, 14° @ +30°C (+86°F) <40 mK, 80° @ +30°C (+86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view [FOV] | 42° × 32° 24° × 18° 14° × 10° 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
|---|---|
| Camera software update | Using USB cable or SD card |
| Color | Black |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Digital Camera FOV | 53° × 41° |
| Digital Zoom | 1-4x continuous |
| f number | 1.1, 42° 1.3, 24° 1.5, 14° 1.3, 80° ° |
| Field of View | 42° × 32° 24° × 18° |
| Field of view [FOV] | 42° × 32° 24° × 18° 14° × 10° 80° × 63° |
| Focal Length | 10 mm (0.39 in.), 42° 17 mm (0.67 in.), 24° 29 mm (1.41 in.), 14° 5 mm (0.19 in.), 80° |
| Focus | Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual |
| Gallery | Yes |
| Image Frequency | 30 Hz |
| IR Resolution | 320 × 240 (76,800 pixels) |
| Laser Alignment | Position is automatically displayed on the infrared image |
| Lens | 24°, 14°, 42°, 80°, DFOV (24°, 14°), DFOV (42°, 24°) |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m (0.49 ft.), 42° 0.15 m (0.49 ft.), 24° 1.0 m (3.28 ft.), 14° Macro mode 103 µm as option to 24° 0.10 m (3.9 in), 80° |
| Minimum Focus Distance with MSX | 0.65 m (2.13 ft.), 42° 0.5 m (1.64 ft.), 24° 1.0 m (3.28 ft.), 14° |
| Non_radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture_in_Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Over UVC |
| Resolution | 320 × 240 pixels (VGA) |
| Spatial resolution [IFOV] | 2.41 mrad/pixel, 42° 1.31 mrad/pixel, 24° 0.75 mrad/pixel, 14° 5.2 mrad/pixel, 80° |
| Spectral Range | 7.5 - 14.0 µm |
| Thermal Sensitivity_NETD | <30 mK, 42° @ +30°C (+86°F) <40 mK, 24° @ +30°C (+86°F) <50 mK, 14° @ +30°C (+86°F) <40 mK, 80° @ +30°C (+86°F) |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Thermal Studio |
| Video Lamp | Built-in LED light |
| Viewfinder | No |
| Visual Image | Yes |
| Visual Video Recording | H.264 to memory card |
| Visual Video Streaming | Yes |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Automatic hot and cold detection | Automatic maximum/minimum markers within area |
| Color alarm [isotherm] | •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation |
| Difference Temperature | Yes |
| Emissivity Correction | Yes, variable from 0.01 to 1.0 or selected from materials list |
| Measurement Corrections | Yes |
| Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
| Measurement Presets | •No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2 |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F) |
| Reference Temperature | Yes |
| User Interface | |
|---|---|
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Display Technology | IPS |
| Languages | 21 |
| Text | Predefined list or touchscreen keyboard |
| Touch Screen | Optically bonded PCAP |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Communication & Data Storage | |
|---|---|
| Audio | Microphone and speaker for voice annotation of images |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Image File Format | Standard JPEG with measurement data included |
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| METERLiNK_Bluetooth | Communication with headset and external sensors |
| Storage Media | Removable SD card |
| USB | USB Type-C: data transfer/video/power |
| USB_Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Type-C |
| Power | |
|---|---|
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera or on separate charger |
| Battery voltage | 3.6 V |
| Battery weight | 195 g (6.89 oz) |
| Charging system | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| External Power Operation | AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional) |
| Power Management | Automatic shut-down and sleep mode |
| Environmental & Certifications | |
|---|---|
| EMC | •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission) |
| Humidity [operating and storage] | IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles |
| Operating Temperature Range | –15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC 1/4"-20 |
| General | |
|---|---|
| Compatible with FLIR software | FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK |
| Housing material | PCABS with TPE, magnesium |
| Laser Pointer | Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) |
| Packaging Size | 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in) |
| Size [L x W x H] | Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in) |
| Weight [battery included] | 1.4 kg (3.1 lb) |
Accessories
- IR lens, f=5 mm (80°), T300805
- FlexView® Dual FOV IR Lens (42°/24°) with Lens Case
- FlexView® Dual FOV IR Lens (24°/14°) with Lens Case
- FLIR Macro Lens 2.0x with Case (T300238)
- 14° Lens with Case (T199588)
- 24° Lens with Case (T199589)
- 42° Lens with Case (T199590)
- f=70 mm (6°) IR lens with case (T300095)
