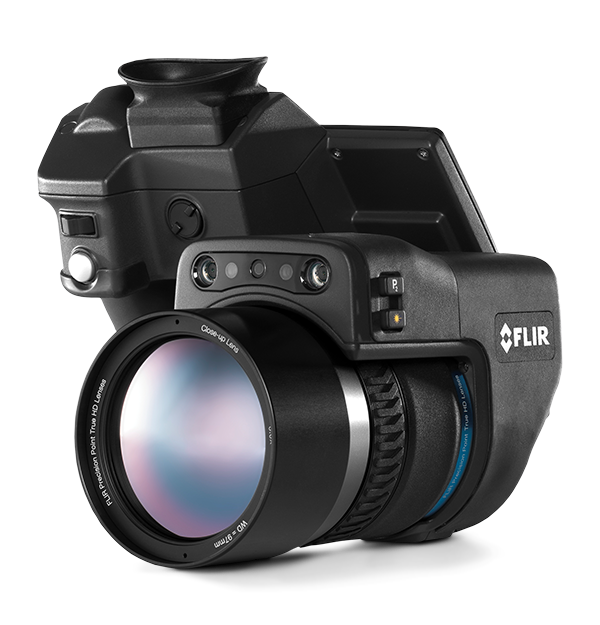

The T1020 (T1K) is a portable, high-speed, high definition infrared cameras designed to help you capture stunning thermal images and precise temperature measurement, whether you’re in the field or in the lab. Stream lossless radiometric imagery at up to 240 Hz with windowing through the optional High Speed Interface (HSI)*. When paired with a close-up 3× lens, T1K cameras accurately measure temperature on targets down to 51 μm. Whether you’re an engineer, researcher, or product developer, these battery-powered, handheld cameras offer the features and flexibility you need.
An extraordinarily sensitive detector and HD-ready optics provide stunning thermal images and accurate, non-contact temperature measurements
Battery-powered, handheld camera goes where you need it. Wi-Fi communication simplifies image sharing, remote control and viewing, and quick reporting.
Stream uncompressed data to a PC or capture fully dynamic radiometric video in the camera.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 1024 × 768; up to 3.1 MP with UltraMax |
| Detector Pitch | 17 µm |
| Spectral Range | 7.5–14 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| f number | Lens-dependent |
| Thermal Sensitivity_NETD | <20 mK @ 30°C (86°F) |
| Frame Rate [Full Window] | 30 Hz |
| Focus | One shot or manual |
| Imaging & Optical | |
|---|---|
| 4.3 inch Display | 800 × 480 pixels |
| Auto orientation | Automatic landscape or portrait |
| Automatic Image Adjustment | Standard or histogram based on the image content |
| Built_in Digital Camera | 5 Mpixel with LED light |
| Camera size excl lens [L x W x H] | 167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.) |
| Camera software update | Using USB cable or SD card |
| Color palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 17 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital Camera | Field of view adapts to the infrared lens |
| Digital image enhancement | Adaptive digital noise reduction |
| Digital Zoom | 1–8× continuous |
| Display Type | Capacitive touchscreen |
| f number | Lens-dependent |
| Field of view [FOV] | Lens-dependent |
| Focal Length | 45° lens: 21.2 mm (0.83 in.); 28° lens: 36 mm (1.42 in.); 3× Closeup lens: 50 mm (2.0 in.); 12° lens: 83.4 mm (3.28 in.); 7° lens: 142 mm (5.59 in.) |
| Focus | One shot or manual |
| Frame Rate [Full Window] | 30 Hz |
| Gallery | Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera |
| Image Description | Add short note (stored in the JPEG exif tag) |
| Image Frequency | 30 Hz |
| Image Modes | Thermal, thermal MSX, picture in picture, digital camera |
| Infrared Image | Full color infrared image |
| IR Resolution | 1024 × 768; up to 3.1 MP with UltraMax |
| Laser | Activated by a dedicated button |
| Laser Alignment | Position is automatically displayed on the infrared image |
| Lens Identification | Automatic |
| Manual Image Adjustment | Linear based, possible to adjust level/span/max./min. |
| Minimum IR focus distance | 1.3 m (4.26 ft) |
| Minimum IR–visual alignment distance | 1.3 m (4.26 ft) |
| MSX Resolution | 1024 × 768 pixels |
| Multi Spectral Dynamic Imaging [MSX] | Thermal image with enhanced detail presentation |
| Non_radiometric IR video recording | H.264 to the memory card |
| Non_radiometric IR video streaming | H.264 video using Wi-Fi H.264 video using USB |
| Optional Lenses | 7°, 12°, 28°, 45°, and 3x close-up lenses |
| Picture_in_Picture | Resizable and movable infrared area on the visual image |
| Radiometric IR video recording | Real-time radiometric recording (RTRR) to the memory card |
| Radiometric IR video streaming | Real-time radiometric streaming (RTRS) via USB |
| Sketch | Draw on the thermal/digital image or add predefined stamps Separate PC software with extensive report generation |
| Spatial resolution [IFOV] | 0.47 mrad |
| Spectral Range | 7.5–14 µm |
| Thermal Sensitivity_NETD | <20 mK @ 30°C (86°F) |
| UltraMax | Yes |
| Video Lamp | Built-in LED light |
| Viewfinder | Built-in 800 × 480 pixels |
| Visual Image | Full color visual image |
| Visual Video Recording | H.264 to the memory card |
| Visual Video Streaming | H.264 video using Wi-Fi H.264 video using USB |
| Measurement & Analysis | |
|---|---|
| Area | 5 + 5 areas (boxes and circles) with max./min./average |
| Atmospheric transmission correction | Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity |
| Color alarm [isotherm] | Above/below/interval |
| Difference Temperature | Delta temperature between the measurement functions and the reference temperature |
| Emissivity Correction | Variable from 0.01 to 1.0 or selected from the materials list |
| External Optics and Windows Correction | Automatic, based on the inputs of the window transmission and temperature |
| Measurement Corrections | Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation |
| Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
| Measurement Presets | No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 |
| Object Temperature Range | -40°C to 2000°C (-40°F to 3632°F) |
| Object temperature range Accuracy | ±1°C (±1.8°F) or ±1% at 25°C for temperatures between 5°C to 150°C ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures up to 1200°C |
| Optics Transmission Correction | Automatic, based on signals from internal sensors |
| Profile | 1 line profile with max./min. temperature |
| Reference Temperature | Manually set using the difference temperature |
| Reflected apparent temperature correction | Automatic, based on the input of the reflected temperature |
| Set_up Commands | Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information |
| Spot Meter | 10 |
| User Presets | The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta |
| Communication & Data Storage | |
|---|---|
| Antenna | Internal |
| Audio | Microphone headset via Bluetooth for the voice annotation of images |
| Bluetooth | Frequency range: 2402–2480 MHz, supports 2.1 and 4.0 |
| File Formats | Standard JPEG, measurement data included CSQ, measurement data included |
| File Formats_Visual | Standard JPEG, automatically associated with the corresponding thermal image |
| Image Storage | Standard JPEG, including digital image and measurement data, on a memory card |
| Image Storage Mode | Simultaneous storage of thermal and digital images in the same JPEG file Option to store a digital photo as a separate JPEG file |
| Interfaces | USB Micro-B, Bluetooth, Wi-Fi, HDMI |
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| METERLiNK_Bluetooth | Communication with headset and external sensors |
| SD Card | One card slot for removable SD memory cards |
| Storage Media | Removable media SD or SDHC card. Class 10 or better recommended |
| Time Lapse | 15 seconds to 24 hours |
| USB | USB Micro-B: data transfer to and from a PC, uncompressed colorized video |
| USB_Standard | USB 2.0 High Speed USB Micro-B connector |
| Video Connector Type | HDMI type C |
| Video Out | HDMI 640 × 480 HDMI 1280 × 720 DVI 640 × 480 DVI 800 × 600 |
| WiFi | Standard: 802.11 b/g/n Frequency range: 2412–2462 MHz Max. output power: 15 dBm |
| General | |
|---|---|
| Box Contents | Infrared camera with lens Battery (2 each), Battery charger, HDMI-HDMI cable, Hard transport case Large eyecup, Lens cap, Neck strap, Power supply, including multi-plugs USB cable, Standard A to Micro-B Calibration certificate, FLIR Tools+ license card, User documentation on CD-ROM Printed documentation, Bluetooth headset, SD card |
| Compass | Camera direction automatically added to every image |
| Housing material | Magnesium |
| Weight | 2.1 kg (4.6 lb) |
| User Interface | |
|---|---|
| Display | Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels |
| Text | Add table, select between predefined templates |
| Touch Screen | Yes |
| Voice | 60 seconds (via Bluetooth) stored with the image |
| Power | |
|---|---|
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li ion battery |
| Charging system | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F) |
| Charging Time | 2.5 hours to 90% capacity, charging status indicated by LEDs |
| External Power Operation | AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional) |
| Power Management | Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown |
| Environmental & Certifications | |
|---|---|
| EMC | ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003 |
| Encapsulation | IP 54 (IEC 60529) |
| Ergonomics | The viewfinder plus the 120° rotating optical block allow you to point the camera in multiple directions while maintaining a comfortable position |
| Humidity [operating and storage] | IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles |
| Laser Classification | Class 2 |
| Laser Type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Shock | 25 g (IEC 60068-2-29) |
| Storage Temperature Range | –40 to +70°C (–40 to 158°F) |
| Tripod Mounting | UNC ¼"-20 |
| Vibration | 2 g (IEC 60068-2-6) |
