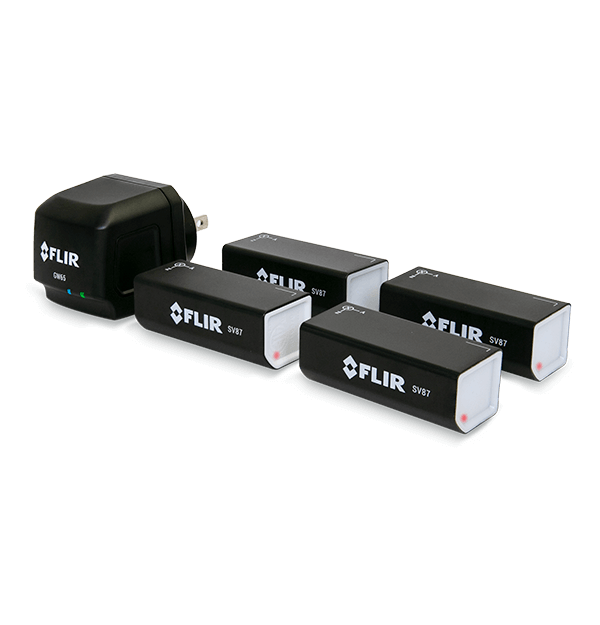

Vibration trending and analysis can help detect serious problems with industrial machines long before the damage can be seen. That’s why the FLIR SV87-KIT Vibration Monitoring Solution is essential for manufacturing processes that use rotating machinery, industrial pumps, fans, gearboxes, and motors. The included remote monitoring gateway stores sensor data and wirelessly transmits readings in real time to a mobile device or PC. This allows professionals to make knowledgeable decisions about machine operation and maintenance without having to wait for the next manual inspection – reducing unplanned downtime, lowering operational costs, and improving profitability.
Specifications
| Measurement & Analysis | |
|---|---|
| AC Voltage | Gateway: 100 V to 240 V AC, 50/60 Hz |
| Frequency Range | 10 Hz to 1 kHz |
| Communication & Data Storage | |
|---|---|
| Memory Type | On Gateway: Flash memory; On Windows: PC hardware |
| WiFi | IEEE 802.11 b/g/n 2.4 GHz |
| Imaging & Optical | |
|---|---|
| Storage Capacity | On Gateway: 32 MB (approx. 5 days of data for 4 sensors); On Windows: Limited by PC hardware |
| User Interface | |
|---|---|
| Display | On Mobile apps and Windows® app - temperature, g-force (x, y, z) and acceleration (x, y, z). Live data, trending charts, historical data |
| Power | |
|---|---|
| Battery Type | Sensor: 3.6 V Lithium battery |
| Low Battery Indication | Sensor: Red LED |
| General | |
|---|---|
| Size | Gateway: 5.41 × 4.94 × 4.94 cm (2.11 × 1.93 × 1.93 in); Sensor: 6.5 × 2.5 × 2.7 cm (2.54 × 0.98 × 1.05 in) |
| Weight | Gateway: 66 g (0.15 lb); Sensor: 62 g (0.14 lb) |
| Environmental & Certifications | |
|---|---|
| Altitude | 2000 m |
| Certifications | ETL, IC, FCC, CE, RCM |
| Drop test | Designed for 1 m (3.28 ft) |
| EMC | EN 301 489-1/-17; EN 55032/EN 55024; EN 61000-3-2/-3; FCC Part 15C, Part 15B |
| Encapsulation | Gateway: IP40; Sensor: IP67 |
| Humidity [operating and storage] | 10% to 95% relative humidity (RH) non-condensing |
| Operating Temperature Range | Gateway: -25 to 65°C (-13 to 149°F); Sensor: -30 to 80°C (-22 to 176°F) |
| Radio Spectrum | 2.4 GHz (Wi-Fi and Bluetooth) |
| Shock and Vibration | Sensor: ±32 g |
| Storage Temperature Range | Gateway: -25 to 65°C (-13 to 149°F); Sensor: -30 to 80°C (-22 to 176°F) |
| Warranty | 3-year warranty
http://www.flir.com/testwarranty/ |
