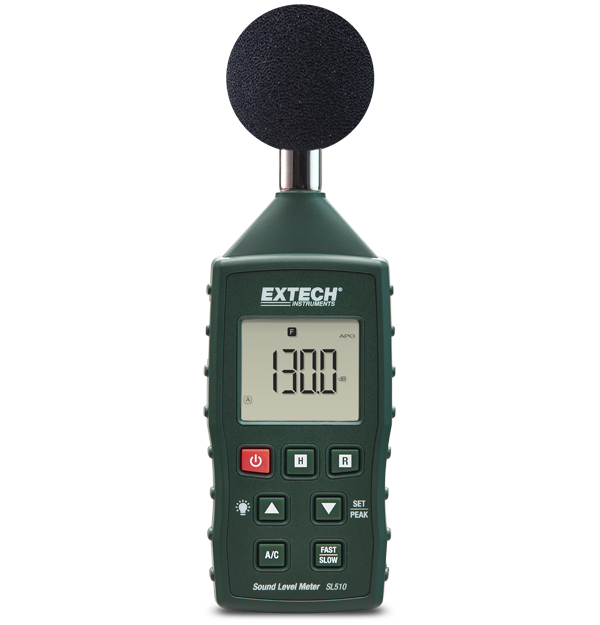

Extech’s ultra-compact sound meter meets class 2 standards with ±1dB high accuracy that allows for quick and reliable sound level testing. It features a large backlit display for easy viewing and measures A & C weighting from 35 to 130dB with Fast and Slow response time mode. Size is small enough to conveniently fit in your pocket and includes a wrist strap.
Specifications
| General | |
|---|---|
| Microphone | Condenser 0.5" (12.7mm) |
| Response Time | Fast/Slow |
| Sound Range [dB] | 35 to 130dB |
| Sound Range [dB] Basic Accuracy | ±1dB @ 1KHz |
| Sound Range [dB] Max Resolution | 0.1dB |
| Weighting | A,C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.6 × 1.8 × 1.2" (167 × 45 × 20mm) Range |
| Power | 3 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 5.6oz (160g) Range |
Resources & Support
User Manual
Extech SL510 User Manual
Datasheet
Extech SL510 Datasheet
Certification
Extech SL510 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
