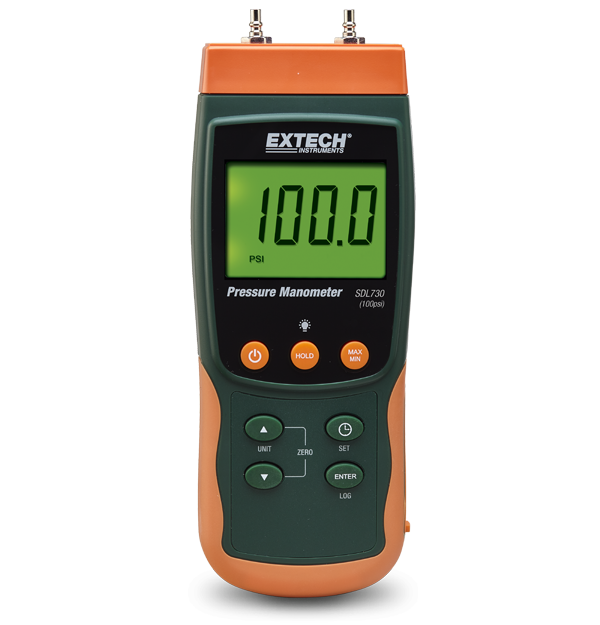

Measure and datalog high-range 101.5psi (7000mbar) pressure readings. Dual differential inputs with internal sensors. Manually store up to 99 readings, while SD memory card (included) allows continuous datalogging and readings can easily be exported to an Excel® format for further analysis.
Specifications
| General | |
|---|---|
| Pressure [atmosphere] | 6.905atm |
| Pressure [atmosphere] Basic Accuracy | ±2% full scale |
| Pressure [atmosphere] Max Resolution | 0.005atm |
| Pressure [hPa] | 7000hPa |
| Pressure [hPa] Basic Accuracy | ±2% full scale |
| Pressure [hPa] Max Resolution | 5hPa |
| Pressure [inH2O] | 2810inH₂O |
| Pressure [inH2O] Basic Accuracy | ±2% full scale |
| Pressure [inH2O] Max Resolution | 2inH₂O |
| Pressure [inHg] | 206.7inHg |
| Pressure [inHg] Basic Accuracy | ±2% full scale |
| Pressure [inHg] Max Resolution | 0.1inHg |
| Pressure [kgcm2] | 7.135kg/cm² |
| Pressure [kgcm2] Basic Accuracy | ±2% full scale |
| Pressure [kgcm2] Max Resolution | 0.005kg/cm² |
| Pressure [kPa] | 700kPa |
| Pressure [kPa] Basic Accuracy | ±1% full scale |
| Pressure [kPa] Max Resolution | 0.5kPa |
| Pressure [mbar] | 7000mbar |
| Pressure [mbar] Basic Accuracy | ±2% full scale |
| Pressure [mbar] Max Resolution | 5mbar |
| Pressure [mH2O] | 71.35mH₂O |
| Pressure [mH2O] Basic Accuracy | ±2% full scale |
| Pressure [mH2O] Max Resolution | 0.05mH₂O |
| Pressure [mmHg] | 5250mmHg |
| Pressure [mmHg] Basic Accuracy | ±2% full scale |
| Pressure [mmHg] Max Resolution | 5mmHg |
| Pressure [psi] | 101.5psi |
| Pressure [psi] Basic Accuracy | ±2% full scale |
| Pressure [psi] Max Resolution | 0.05psi |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.5 × 2.7 × 1.8" (190 × 68 × 45 mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 0.59 lbs (265g) |
Resources & Support
User Manual
Extech SDL730 User Manual
Datasheet
Extech SDL7xx Datasheet
User Manual
Extech SDL730 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
