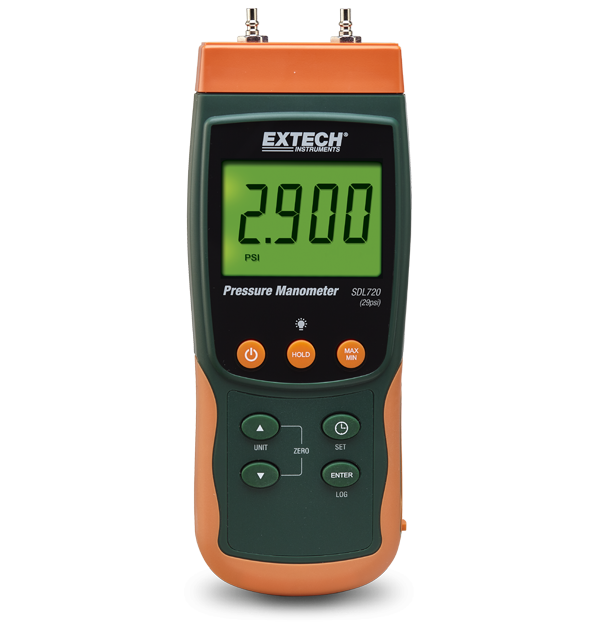

Measure and datalog mid-range 29psi (2000mbar) pressure readings. Dual differential inputs with internal sensors. Manually store up to 99 readings, while SD memory card (included) allows continuous datalogging and readings can easily be exported to an Excel® format for further analysis.
Specifications
| General | |
|---|---|
| Pressure [atmosphere] | 1.974atm |
| Pressure [atmosphere] Basic Accuracy | ±2% full scale |
| Pressure [atmosphere] Max Resolution | 0.001atm |
| Pressure [hPa] | 2000hPa |
| Pressure [hPa] Basic Accuracy | ±2% full scale |
| Pressure [hPa] Max Resolution | 1hPa |
| Pressure [inH2O] | 802inH₂O |
| Pressure [inH2O] Basic Accuracy | ±2% full scale |
| Pressure [inH2O] Max Resolution | 0.5inH₂O |
| Pressure [inHg] | 59.06inHg |
| Pressure [inHg] Basic Accuracy | ±2% full scale |
| Pressure [inHg] Max Resolution | 0.02inHg |
| Pressure [kgcm2] | 2.040kg/cm ² |
| Pressure [kgcm2] Basic Accuracy | ±2% full scale |
| Pressure [kgcm2] Max Resolution | 0.001kg/cm ² |
| Pressure [kPa] | 200kPa |
| Pressure [kPa] Basic Accuracy | ±1% full scale |
| Pressure [kPa] Max Resolution | 0.1kPa |
| Pressure [mbar] | 2000mbar |
| Pressure [mbar] Basic Accuracy | ±2% full scale |
| Pressure [mbar] Max Resolution | 1mbar |
| Pressure [mH2O] | 20.40mH₂O |
| Pressure [mH2O] Basic Accuracy | ±2% full scale |
| Pressure [mH2O] Max Resolution | 0.01mH₂O |
| Pressure [mmHg] | 1500mmHg |
| Pressure [mmHg] Basic Accuracy | ±2% full scale |
| Pressure [mmHg] Max Resolution | 1mmHg |
| Pressure [psi] | 29psi |
| Pressure [psi] Basic Accuracy | ±2% full scale |
| Pressure [psi] Max Resolution | 0.01psi |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.5 × 2.7 × 1.8" (190 × 68 × 45 mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 0.59lbs (265g) |
