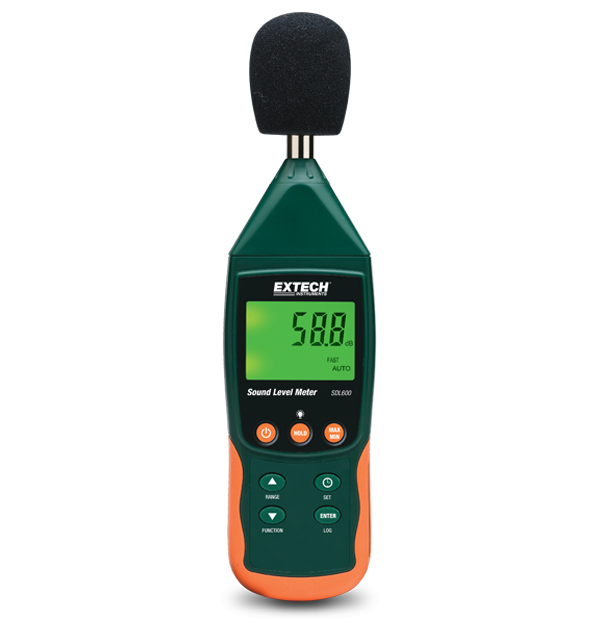

The SDL600 records data on an SD card in Excel format. High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards. 30 to 130dB measurement range. Auto or Manual ranging. AC analog output for connection to an analyzer or recorder. Large backlit LCD display. Stores 99 readings manually and 20M readings via 2G SD card. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. User programmable sampling rate from 1 to 3600 seconds. Featuring Min/Max, Data Hold, and Auto Power Off functions. Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.
Specifications
| General | |
|---|---|
| Analog Output | AC |
| Frequency Bandwidth | 31.5 to 8000Hz |
| Memory | 20M data records using 2G SD card |
| Response Time | Fast/Slow |
| Sound Range [dB] | 30 to 130dB (3 ranges) |
| Sound Range [dB] Basic Accuracy | ±1.4dB |
| Weighting | A,C |
| Additional Details | |
|---|---|
| Certifications | SDL600-NIST_S: CE, NIST SDL600_S: CE |
| Dimensions | 9.8 × 2.9 × 1.9" (250 × 73 × 48mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 18.3oz (520g) |
Resources & Support
Datasheet
Extech SDL600 Datasheet
Certification
Extech SDL600 Declaration of Conformity
User Manual
Extech SDL600 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
