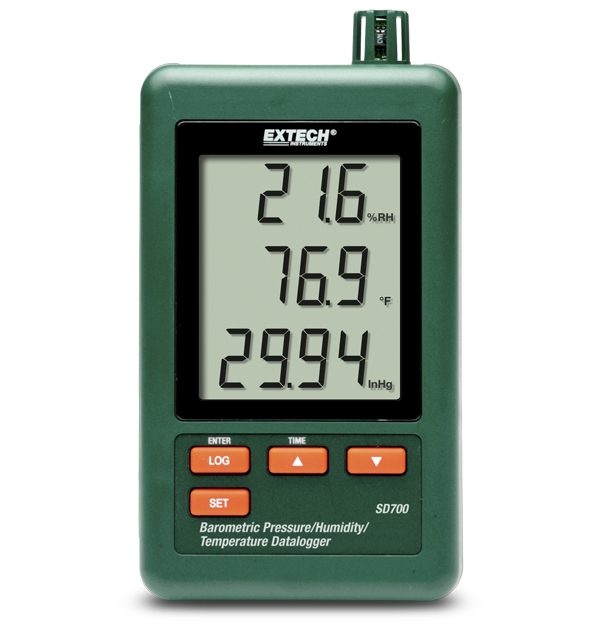

SD700 records data to SD card in Excel format. Displays Barometric Pressure in 3 units of measure: hPa, mmHg, and inHg. Triple LCD simultaneously displays Barometric Pressure, Temperature, and Relative Humidity. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. Selectable data sampling rate from 5, 10, 30, 60, 120, 300, 600 seconds. Complete with (6) AAA batteries, SD memory card, Universal AC adapter, and mounting bracket.
Specifications
| General | |
|---|---|
| Memory | 20M data using 2G SD card |
| Pressure [hPa] | 10 to 1100 hPa |
| Pressure [hPa] Max Resolution | 0.1 hPa |
| Pressure [inHg] | 0.29 to 3248 inHg |
| Pressure [inHg] Max Resolution | 0.01inHg |
| Pressure [mmHg] | 7.5 to 825.0 mmHg |
| Pressure [mmHg] Max Resolution | 0.1mmHg |
| Relative Humidity | 10 to 90% |
| Relative Humidity Basic Accuracy | ±(4% of reading + 1%) |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | 32 to 122 °F (0 to 50 °C) |
| Temperature [Air] Basic Accuracy | ±1.5 °F (0.8 °C) |
| Temperature [Air] Max Resolution | 0.1 °F(°C) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.2 × 3.1 × 1.3" (132 × 80 × 32mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 10oz (285g) |
Resources & Support
User Manual
Extech SD700 User Manual
Certification
Extech SD700 Declaration of Conformity
User Manual
Extech SD700 User Manual GB
Datasheet
Extech SD700 Datasheet
