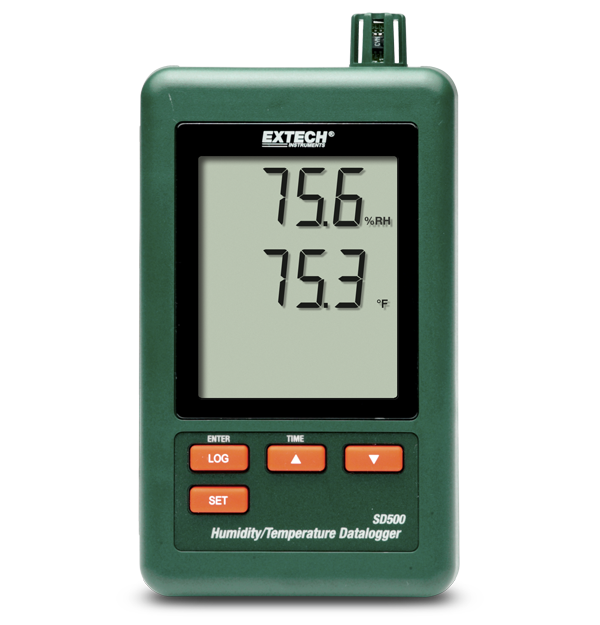

This Humidity/ Temperature Datalogger records data on an SD card in Excel format for easy transfer to a PC for analysis. It features a Dual LCD that simultaneously displays Relative Humidity and Temperature, and a selectable data sampling rate of 5, 10, 30, 60, 120, 300, and 600 seconds. Each stored reading includes a date and time stamp. 10 to 95% Relative Humidity and 32 to 122°F (0 to 50°C) Temperature ranges. Complete with 6 AAA batteries, SD memory card, Universal AC Adaptor, and mounting bracket.
Specifications
| General | |
|---|---|
| Datalogging Interval | 5, 10, 30, 60, 120, 300, 600 seconds or Auto |
| Memory | 20M data using a 2G SD card |
| Relative Humidity | 10 to 90% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature [Air] | 32 to 122°F (0 to 50°C) |
| Temperature [Air] Basic Accuracy | ±1.5°F/0.8°C |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | SD500-NIST_S: CE, NIST SD500_S: CE |
| Dimensions | 5.2 × 3.1 × 1.3" (132 × 80 × 32mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 9.9oz (282g) |
Resources & Support
User Manual
Extech SD500 User Manual
Certification
Extech SD500 Declaration of Conformity
Datasheet
Extech SD500 Datasheet
User Manual
Extech SD500 User Manual GB
