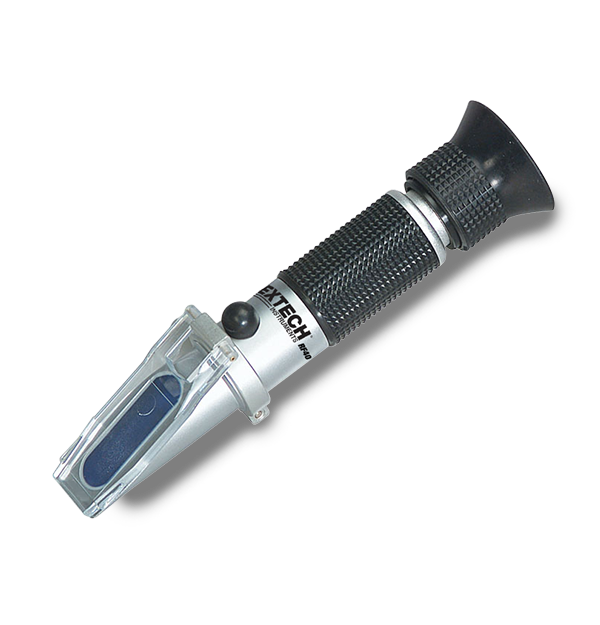

Extech RF40
Portable Battery Coolant/Glycol Refractometer with ATC (°F)
This portable battery coolant/glycol Refractometer is easy to operate refract meters provide accurate and repeatable measurements on easy to read scales. The RF40 measures the freezing point of automotive coolants (propylene glycol and ethylene glycol) and indicates the specific gravity of battery acid and provides a quick reference of battery charge condition. Complete with one year warranty, case, calibration screwdriver, plastic pipette and calibration solution.
Specifications
| General | |
|---|---|
| Battery Acid Specific Gravity | 1.15 to 1.30 |
| Battery Acid Specific Gravity Max Resolution | 0.01 |
| Freezing Point [Ethylene Glycol] | -60 to 25°F (50°F to 86°F ATC) |
| Freezing Point [Ethylene Glycol] Basic Accuracy | ±5°F |
| Freezing Point [Ethylene Glycol] Max Resolution | 2°F |
| Freezing Point [Propylene Glycol] | -60° to 32°F (50°F to 86°F ATC) |
| Freezing Point [Propylene Glycol] Basic Accuracy | ±5°F |
| Freezing Point [Propylene Glycol] Max Resolution | 2°F |
| Additional Details | |
|---|---|
| Dimensions | 6.5 × 1.5 × 1.5" (165 × 38 × 38mm) |
| Warranty | 2 years |
| Weight | 7oz (200g) |
Resources & Support
User Manual
Extech RF40 User Manual
Datasheet
Extech RFxx Datasheet
