Quasar 4K Ultra HD Bullet
4K Ultra HD Bullet

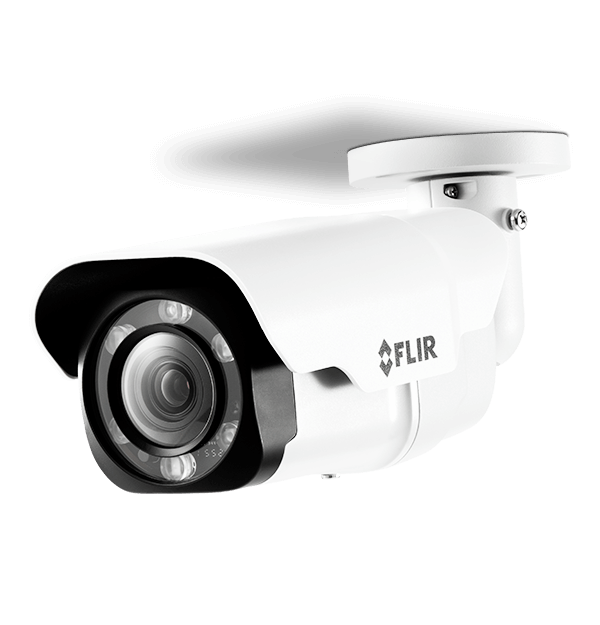

The Quasar 4K Ultra Bullet security cameras features 4K Ultra HD resolution. With its broadcast-level motion processing architecture, the camera uses the industry’s lowest bandwidth, while delivering predictable storage. Ther result is lower utility costs and reduced Total Cost of Ownership (TCO).
Specifications
| Compliance & Certifications | |
|---|---|
| USA | UL, FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User account with password protection and IP filter |
| Environmental | |
|---|---|
| Operating Temperature3 | -40° to 50° C (-40° to 122° F) |
| Storage Temperature | -20° to 70° C (-4° to 158° F) |
| General | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Day_Night Mode | Smart / Auto / On / Off |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network (1GB Flash / 8GB RAM) |
| Input Voltage | 12 VDC / 24 VAC ±10% or 802.3af PoE (Class 0) |
| Power Connection | AC / DC terminal block or PoE |
| Power Consumption | 6W indoor or 13W outdoors with heater / IR |
| Privacy Zones | On / Off - 5 zones |
| Scanning Mode | Progressive |
| Tamper Detection | On / Off / schedule |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| PTZ | |
|---|---|
| Pan_Tilt_Rotate | 360, ±90° and 360 |
| System Integration | |
|---|---|
| Alarm In | 1 dry alarm contact |
| Alarm Output | 1 relay contact, 300V AC / DC at 130 mA maximum |
| Angle of Illumination | Full 60° |
| Audio Connections | Terminal block |
| Bi_directional Audio | Full duplex, line in and line out, G.711, G.726 |
| Ethernet | 10/100/1000 Ethernet, auto sensing, half/full duplex (RJ45) |
| Input | 1 dry alarm contact |
| IR Distance | up to 40 m (131 ft.) |
| Network Protocol | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Number of IR LEDs | 6 high power / high efficiency SMD type |
| Output | 1 relay contact, 300V AC / DC at 130 mA maximum |
| Remote Configuration | via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 9+ |
| Thermal Camera | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/1.7" BSI CMOS |
| Wide Dynamic Range | On / Off - 3 levels |
| Visible Camera | |
|---|---|
| Backlight Compression | On / Off |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/1.7" BSI CMOS |
| Iris Control | P-iris |
| Lens Type | CB-6208-11-I: Varifocal 3.5-8mm, 116°-50° HFOV, F1.4 CB-6208-21-I: Varifocal 9-22mm, 45°-18° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 2D / 3D / Color |
| Sensitivity | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensor Resolution | 4072 x 3076 |
| Signal to Noise Ratio | ±50 dB |
| White Balance | Auto / indoor / outdoor / ATW / manual |
| Wide Dynamic Range | On / Off - 3 levels |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 FPS @ 4K (NTSC/PAL) or H.264 15/12 FPS @ 4K + 1080p + 720p + D1 (NTSC/PAL) |
| Rate Control | CBR/VBR |
| Resolution Range | Scalable from CIF to UHD 4K |
| SD Card Recording2 | Micro SDXC up to 128GB (Class 10) |
| Video Bandwidth | Configurable between 64Kbps and 20Mbps |
| Video Compression | Fully compliant multi-stream H.264 main/high/SVC/baseline profile + MJPEG (FHD) |
| Video Motion Detection | On / Off / schedule |
