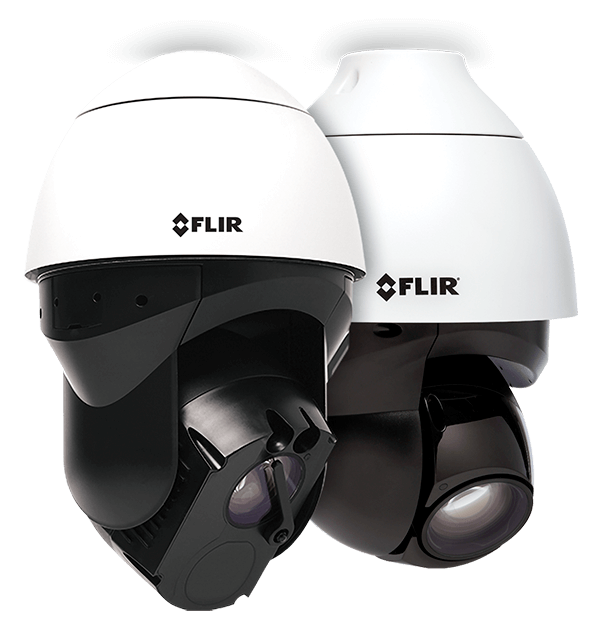

Quasar™ 4K IR PTZ Cameras
VISIBLE PTZ SECURITY CAMERAS
Product Variations
With crisp 4K video resolution, on-board long-range IR illumination, and 22x or 31x optical zoom options, FLIR Quasar™4K IR PTZ cameras deliver critical situational awareness. Exceptional field of view gives operators the ability to seamlessly monitor key details throughout large areas. The combination of high-performance optics and sensors, exceptional low light visible imaging, and effortless integration with all major third-party VMS and FLIR United VMS makes Quasar 4K IR PTZ cameras an ideal solution for critical infrastructure sites and remote facilities that require close monitoring.
Sharp images, wide coverage, and onboard IR illuminator outperform other PTZ cameras, while delivering real-time situational awareness and post-event evidentiary support.
Both cameras are IP66-rated, while the 31x version offers additional ruggedized features like expanded operating temperature, NEMA-4x rating, PT de-icing, built-in lens wiper, and remote-operated washer accessory for isolated or hard to access installations.
Simplified web interface allows quick access to critical operations, while advanced cybersecurity features enforce best-practices to help keep your facility safe.
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN 50130-4, EN61000-6-4 (Class A), RoHS, LVD, NEMA 4X, WEEE |
| ONVIF Compliance | ONVIF Profile S |
| USA | FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User credentials with policy, protection from brute force attack, TLS |
| Environmental | |
|---|---|
| Humidity | 0% ~ 95% relative |
| Operating Temperature | -40° to 60°C (-40° to 140°F) cold start |
| Storage Temperature | -55° to 85° C (-67°to 185° F) |
| General | |
|---|---|
| 3D Noise Reduction | On / Off |
| AGC Control | Auto |
| Day_Night: IR Cut Filter | Auto / Manual |
| Dimensions | 268 X 409 mm (10.55 x 16.1 in.) |
| Enclosure Rating | IK10 Upper / IP66 Overall |
| Firmware Upgrade | Flash upgrade via network (1GB Flash / 2GB RAM) |
| Input Voltage | 24VAC (+/- 10%) Universal POE injector |
| Power Connection | PoE / Terminal Block |
| Power Consumption | Max 61W 24VAC/43W POE with heater and IR on |
| Unit Weight | 9.12 Kg (20.1 lbs.) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Measurement & Analysis | |
|---|---|
| Maximum resolution | 3840x2160 (4KUHD) |
| PTZ | |
|---|---|
| Auto Flip | Mechanical / Off |
| Horizontal Viewing Angles | 61.8° (Wide) to 2.15° (Tele) |
| Manual Speed | Pan: 0.1° to 90°/s, Tilt: 0.1° to 60°/s |
| Pan_Tilt Travel | 360° continuous /-10°to 190° |
| Preset Accuracy | Pan: 0.16° Tilt: 0.18° |
| Preset Speed | 5° to 280° / sec |
| Presets | 256 |
| Presets_Preset Accuracy | Pan: 0.1° Tilt: 0.1° |
| Proportional Pan and Tilt | On / On (pan and tilt speed proportional to zoom ratio) |
| Tilt Travel | -10° to 190° |
| System Integration | |
|---|---|
| Alarm In | 4 dry contact in |
| Alarm IO | 4 dry contact In - 2 relay Out |
| Alarm Output | 2 relay out |
| Audio Bandwidth | Configurable between 16 kbps and 64 kbps |
| Audio Connections | Terminal block |
| Bi_directional Audio | Full duplex, line in/line out, G.711 |
| Configuration | Remote: via web access or supported VMS |
| Distance | Angle of illumination | Up to 200 m (656 ft.) | 6° / 30° / 90° |
| Ethernet | 10 /100/1000 Mbps Base-T auto sensing, half / full duplex (RJ45) |
| LED Type | High efficiency SMD |
| Network Protocol | IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, ONVIF Profile S, IEEE 802.1X, TLS |
| Remote Configuration | Via web access or supported VMS |
| Supported Web Browser | Chrome (recommended), Firefox, Edge, and Safari (no ActiveX required) |
| Thermal Camera | |
|---|---|
| Digital Zoom | 31x / Up to 8x |
| Focal Length | 6.5 mm to 202 mm |
| Image Sensor | 1/1.8" CMOS |
| Minimum Illumination | 0.25 Lux (color) @ (f1.6 AGC On, 30FPS) / 0.10 Lux (BW) @ (f1.6 AGC On, 30 FPS) |
| Optical Zoom | 31x |
| Wide Dynamic Range | Shutter WDR, 130db |
| Visible Camera | |
|---|---|
| Digital Zoom | 31x / Up to 8x |
| Focal Length | 6.5 mm to 202 mm |
| Focus Mode | Auto / Manual |
| Image Sensor | 1/1.8" CMOS |
| Iris Control | Auto |
| Minimum Illumination | 0.25 Lux (color) @ (f1.6 AGC On, 30FPS) / 0.10 Lux (BW) @ (f1.6 AGC On, 30 FPS) |
| Noise Reduction | On / Off |
| Optical Zoom | 31x |
| Optical_Digital Zoom | 31x / Up to 8x |
| WDR | Shutter WDR, 130db |
| White Balance | Auto, ATW, Manual |
| Wide Dynamic Range | Shutter WDR, 130db |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 fps @ 4K (NTSC/PAL) & H.264 30/25 fps @ VGA (NTSC/PAL) |
| Rate Control | CBR / VBR |
| Resolution Range | Scalable from VGA to 4K |
| Video Compression | Two independent channels of H.264 & M-JPEG |
