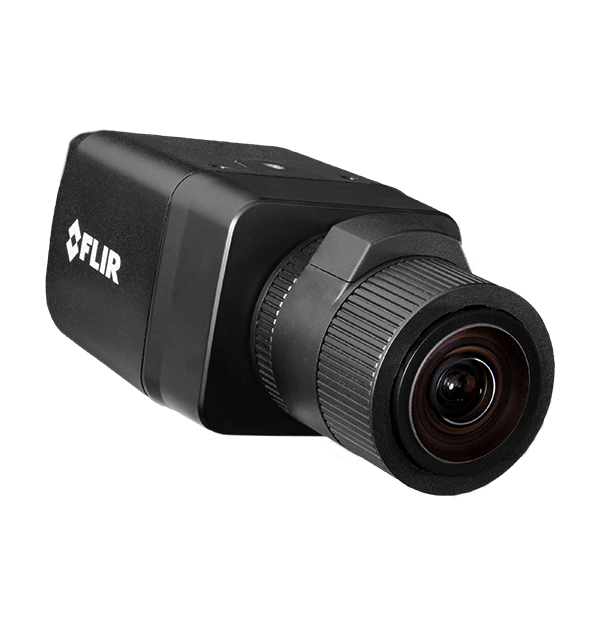

Quasar 4K Fixed Box
Multipurpose Ultra HD Low Light Camera
The Quasar 4K Fixed Box camera offers evidentiary detail, combined with a low light FHD camera for nighttime operations. Utilizing programmable schedules, the camera can switch from 4K UHD mode during daytime to 1080p Enhanced Low Light Performance mode at night, for optimal image capture based on the best scene resolution with sWDR.
The ideal day/night camera for demanding deployments
The Quasar 4K Fixed Box is ideal for challenging deployments found in tunnel entrances, security check-points, critical infrastructure, and casinos.
Combined with FLIR’s United VMS, our Adaptive Streaming technology ensures minimum impact on your network and IT infrastructure.
The camera accepts specialized housings, ranging from explosion-proof to extreme weather, as well as super wide to telephoto lenses.
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM |
| MTBF [hrs] | 663132.0 |
| ONVIF Compliance | Onvif Profile S & G |
| USA | UL, FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User account with password protection and IP filter |
| Environmental | |
|---|---|
| Humidity | 90% (non-condensing) |
| Operating Temperature | -20°C ~ 50°C (-4°F to 122°F ) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| General | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| BLC | On / Off |
| Day_Night Mode | Yes, support for Enhanced Low Light Performance |
| Dimensions | 76 x 100 x 63mm |
| Enclosure | Camera body: aluminum Front cover: PC+ABS plastic |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 802.3af PoE, 12 VDC, 24 VAC |
| Power Connection | 2-pin terminal block, LED indicator |
| Power Consumption | 7.5W |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Tamper Detection | Yes |
| Unit Weight | 0.61kg (1.34 lbs.) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| System Integration | |
|---|---|
| Alarm In | 1 Dry Alarm Contact |
| Alarm Output | 1 Relay Contact |
| Analog Output | 1 x composite video output BNC |
| Audio Input | 1 Audio Line Input, G.711 a/µ-law, AAC support |
| Audio Intensity Detection | Yes |
| Audio OUT | 1 Audio Line Output |
| Ethernet | 10/100, auto sensing, half / full duplex (RJ45) |
| Network Protocol | TCP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 10+, Firefox 50+, Chrome 55+ |
| Thermal Camera | |
|---|---|
| AGC | Auto |
| DSS | max. shutter 1/7.5(6.25)~1/60(50) / min. |
| Image Sensor | 1/2.5" BSI CMOS |
| Visible Camera | |
|---|---|
| AGC | Auto |
| DSS | max. shutter 1/7.5(6.25)~1/60(50) / min. |
| Image Sensor | 1/2.5" BSI CMOS |
| Lens Type | CS mount (lens not included), P-Iris/DC Iris with External Auto Back Focus control |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | New generation 3DNR technology |
| Sensitivity | 0.07 (color)/0.01 (BW) |
| Sensor Resolution | 3840 x 2160 |
| Signal to Noise Ratio | More than 50dB when AGC off |
| WDR | sWDR |
| White Balance | Auto / ATW / Manual / One Push |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 FPS @ 4K (NTSC/PAL) or H.265 27/22 FPS @ 4K (NTSC/PAL) or H.264/H.265 15/12 FPS @ 4K + 1080P + D1 (NTSC/PAL) or H.264/H.265 60/50 FPS @ 1080P + 30/25 FPS @ 720P + D1 (NTSC/PAL) |
| Rate Control | CVBR/CBR |
| Resolution Range | Scalable from D1 to 4K |
| SD Card Recording | microSDXC up to 128GB (Class 10) |
| Video Bandwidth | Configurable between 64Kbps and 20Mbps |
| Video Compression | Enhanced H.265, enhanced H.264 main profile/high profile/baseline profile (MPEG-4 Part 10/AVC), Motion JPEG |
| Video Motion Detection | Yes |
