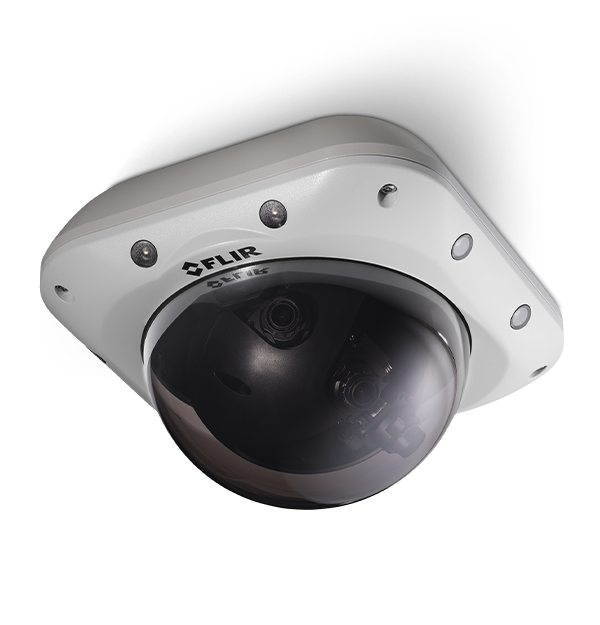

Quasar 4 x 2K Panoramic
Convertible 180° / 360° Mini-Dome Camera
The FLIR Quasar™ Quad Sensor Camera is designed to address any application that requires full coverage of a wide area surveillance, in either 180° or 360° degree field of view. Thanks to its patent-pending, one-step conversion process, the camera features a single form factor that is field configurable to either 180° or 360° mode. The Quad Sensor capability completes FLIR’s offering of wide area full coverage, typically required for city surveillance deployments, critical infrastructure, airports and any other high-profile wide area security applications.
Wide area surveillance for high profile security
Display a single, 180° panoramic scene or achieve full 360° coverage using four individual views.
The Quasar Quad Sensor Camera applies automatic lens distortion correction when stitching together imagery from each 2K sensor.
The camera features H.264 / H.265 compression and is compliant with ONVIF Profile S/G.
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN61000-6-3 & EN50130-4, RoHS, RCM |
| MTBF [hrs] | 494,940 |
| USA | UL, FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication |
| Environmental | |
|---|---|
| Humidity | 90% (non–condensing) |
| Operating Temperature | –40° to 50° C (–40° to 122° F) |
| Storage Temperature | –40° to 60°C (–40°F to 140°F) |
| General | |
|---|---|
| AES | 1/1.75 to 1/10,000 (auto) |
| Bubble F_Stop | F 1.0 - Smoked Bubble (Standard) |
| Bubble Rating | IK10 vandal resistant polycarbonate |
| Compression | H.265 main profile, H.264 main profile/high profile (MPEG-4 Part 10/AVC), Motion JPEG |
| Day_Night Mode | Yes |
| Dimensions | 190mm x 190mm x 130mm (7.48 x 7.48 x 5.11 in.) |
| Enclosure | Indoor/Outdoor: IK10 rated vandal IP67 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | 802.3at PoE+, 24 VAC |
| Power Connection | PoE / 2-pin terminal block |
| Power Consumption | 24.9W with heater and IR On |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 120 db |
| Tamper Detection | Yes |
| Unit Weight | 1.56 Kg (3.44 lbs.) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| PTZ | |
|---|---|
| Pan_Tilt_Rotate | 360 mode: Tilt 63° degrees (fixed) 180 mode: Tilt 45° degrees synchronized down from horizon |
| System Integration | |
|---|---|
| Analog Output | 1 - composite video output BNC |
| Angle of Illumination | Full 60° |
| Audio Connections | Terminal block |
| Bi_directional Audio | 1 Audio Line Level Input, G.711 a/µ-law, AAC support, 1 Audio Line Level Out |
| Distance | Up to 25 m (82 ft.) |
| Ethernet | 10/100, auto sensing, half / full duplex (RJ45) |
| Network Protocol | CP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, SSL, LDAP |
| Number of IR LEDs | High efficiency SMD |
| Peak Emission Wavelength [nm] | 850 |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Internet Explorer 10+, Firefox 50+, Chrome 55+ |
| Thermal Camera | |
|---|---|
| DSS | 1/7.5(6.25)~1/60(50) NTSC (PAL) |
| Image Sensor | 1/2.8" BSI CMOS (x4 Each), supports 5th sensor for 360 viewing mode ordered separately |
| Visible Camera | |
|---|---|
| Backlight Compression | On / Off |
| Bandwidth | Configurable between 64Kbps and 20Mbps |
| DSS | 1/7.5(6.25)~1/60(50) NTSC (PAL) |
| Image Sensor | 1/2.8" BSI CMOS (x4 Each), supports 5th sensor for 360 viewing mode ordered separately |
| Iris Control | Auto–Shutter |
| Lens Type | Fixed 3.6mm, 92° HFOV, F2.0 |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D |
| Sensitivity | 0.02 (color) / 0 (BW) |
| Sensor Resolution | 1920x1080 (x4 Each) |
| Signal to Noise Ratio | More than 50dB when AGC off |
| White Balance | Auto / ATW / Manual / One Push |
| Video & Recording | |
|---|---|
| Maximum Performance | 180 mode: H.264/H.265 30/25 FPS @ 3840x1440 + D1 (NTSC/PAL) H.264/H.265 20/20 FPS @ 3840x1440 + 1920x720 + D1 (NTSC/PAL) 360 mode: H.264 30/25 FPS @ 4K (NTSC/PAL) or H.265 27/25 FPS @ 4K (NTSC/PAL) or H.264/H.265 15/15 FPS @ 4K + 1080P + D1 (NTSC/PAL) |
| Rate Control | CBR, CVBR |
| Resolution Range | 180 mode: Scalable from D1 to 3840x1440 360 mode: Scalable from D1 to 3840x2160 |
| SD Card Recording | microSDXC up to 128GB (Class 10) |
| Video Motion Detection | Yes |
