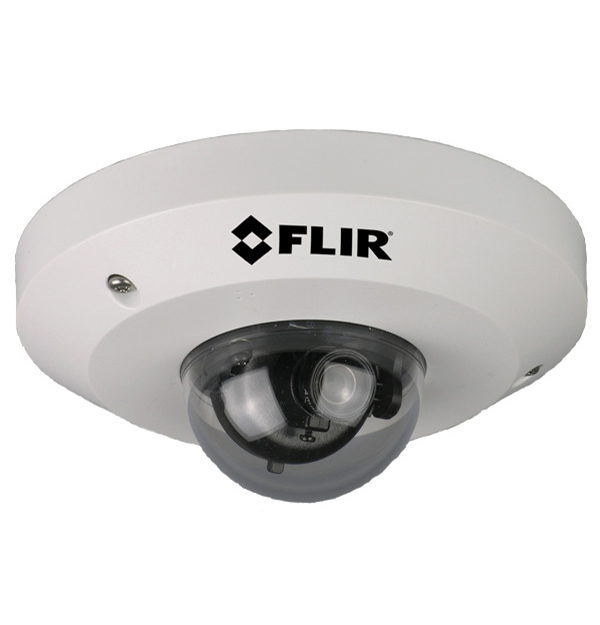

Quasar 1080p Low Profile
Specifications
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN55022-1998 class A, EN55024, RoHS |
| USA | UL FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User account and password protection |
| Environmental | |
|---|---|
| Humidity | 95% (non–condensing) |
| Operating Temperature | 0° to 50° C (32° to 122° F) |
| Storage Temperature | –20° to 70° C (–4° to 158° F) |
| General | |
|---|---|
| 3D Noise Reduction | On / Off – 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| Bubble F_Stop | F0.0 - clear bubble |
| Compression | Fully compliant multi–stream H.264 main profile + MJPEG |
| Dimensions | Indoor: 110.2 x 47.7 mm (4.3 x 1.9 in.) |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Night Mode | Digital night mode |
| Power | 802.3af PoE |
| Power Connection | PoE |
| Power Consumption | 3.5W |
| Privacy Zones | On / Off – 5 zones – 8 colors |
| Scanning Mode | Progressive |
| Tamper Detection | On / Of |
| Unit Weight | 180 g (0.40 lbs.) |
| Warranty | According to DVTEL RMA Policy and Process Notice document |
| PTZ | |
|---|---|
| Pan_Tilt | 160° Pan / 90° Tilt |
| System Integration | |
|---|---|
| Configuration | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Network Protocol | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP,HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF Profile S, IEEE 802.1X |
| Supported Web Browser | Internet Explorer 6.0+ |
| Thermal Camera | |
|---|---|
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.7" HD 1080 CMOS |
| Visible Camera | |
|---|---|
| Bandwidth | Configurable between 64Kbps and 8Mbps |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.7" HD 1080 CMOS |
| Lens Type | 4mm F1.5 / 78° HFOV 2.8mm F2.0 / 110° HFOV |
| Mechanical IR Filter | No |
| Sensitivity | 0.5 (color) measured with DSS OFF at 30 IRE |
| Sensor Resolution | 2.1MP 1920x1080 |
| Signal to Noise Ratio | ±50 dB |
| WDR | On / Off – 3 levels |
| Video & Recording | |
|---|---|
| Maximum Performance | 30fps@HD1080p + 30fps@D1 or 15+15@HD1080p |
| Rate Control | CBR/VBR |
| Resolution Range | Scalable from CIF to HD 1080p |
| SD Card Recording | SDHC/SDXC up to 32GByte |
| Video Motion Detection | Up to 10 independent zones |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Quasar Gen 1 - 20161103
Software Download
FLIR DNA Software - Version 2.3.0.35
Software Firmware Release Note
FLIR Quasar Gen I Firmware Release Notes Version dt20161103NSA
User Manual
FLIR Cyber Hardening Guide
Software Release Note
FLIR Discovery Network Assistant (DNA) Software Release Note v2.3.0.35
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
