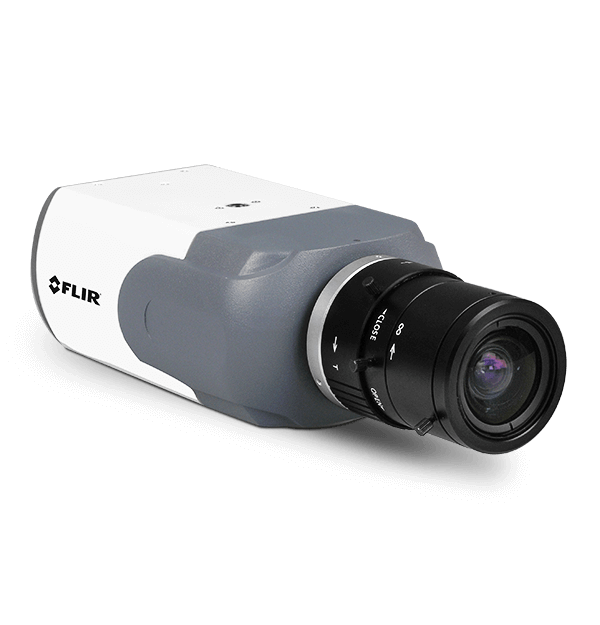

Quasar 1080p Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
Quasar’s high performance broadcast video quality in an HD 1080p fixed camera guarantees frame rates in high motion, complex and low-light scenes found in city surveillance applications, airports, terminals, critical infrastructure sites, campuses and commercial installations.
Specifications
| Cyber Security | |
|---|---|
| Security | User account and password protection |
| General | |
|---|---|
| 3D Noise Reduction | On / Off - 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| Day_Night Mode | Smart IR / auto / on / off |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Privacy Zones | On / Off - 5 zones |
| Scanning Mode | Progressive |
| Tamper Detection | On / Off |
| Measurement & Analysis | |
|---|---|
| Automatic Gain Control | Auto |
| System Integration | |
|---|---|
| Audio Connections | 3.5 mm audio jacks |
| Bi_directional Audio | Full duplex, line / mic in and line out, G.711, G.726 |
| Configuration | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Network Protocol | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Thermal Camera | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.7" HD 1080 CMOS |
| Wide Dynamic Range | On / Off - 3 levels |
| Visible Camera | |
|---|---|
| Backlight Compression | On / Off |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.7" HD 1080 CMOS |
| Iris Control | DC auto |
| Mechanical IR Cut Filter | Yes |
| Sensitivity | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| Sensor Resolution | 1920 x 1080 |
| Signal to Noise Ratio | ≥50 dB |
| White Balance | Auto / indoor / outdoor |
| Wide Dynamic Range | On / Off - 3 levels |
| Video & Recording | |
|---|---|
| Maximum Performance | H.264 30/25 FPS @ HD1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
| Rate Control | CBR/VBR |
| Resolution Range | Scalable from CIF to HD1080 (1920x1080) |
| SD Card Recording | SDHC up to 32GByte |
| Video Bandwidth | Configurable between 64Kbps and 8Mbps |
| Video Compression | Fully compliant multi-stream H.264 main profile + MJPEG |
| Video Motion Detection | On / Off - 10 zones |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Quasar Gen 1 - 20161103
Software Firmware Release Note
FLIR Quasar Gen I Firmware Release Notes Version dt20161103NSA
User Manual
FLIR Cyber Hardening Guide
Tech Note
FLIR Best Practices Guide for Perimeter Security Applications
Software Download
FLIR DNA Software - Version 2.3.0.35
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
