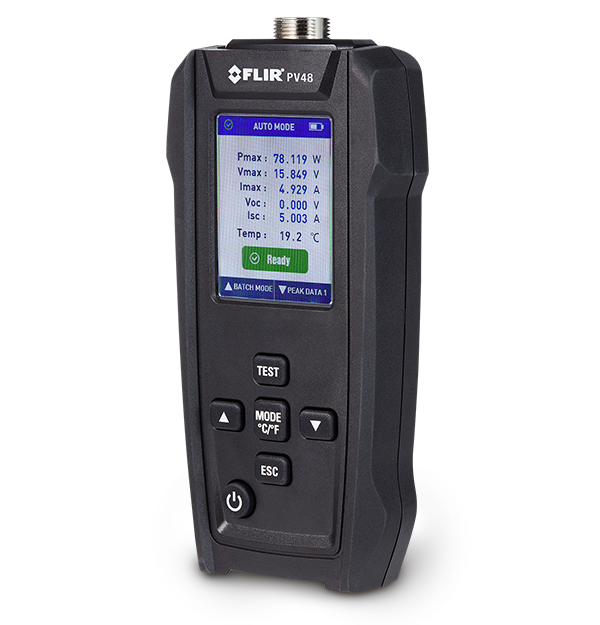

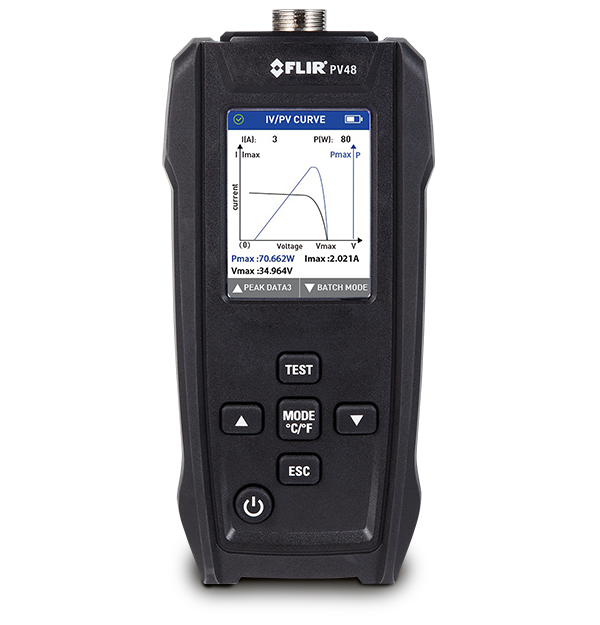

The FLIR PV48 is a highly effective tool engineered to assess the maximum power and efficiency of solar panels. It quickly measures critical parameters such as maximum power, voltage, current, open-circuit voltage (VOC), short-circuit current (ISC), and ambient temperature. With its I-V curve tracer, it offers intuitive and visual analysis of up to 800W per panel, ensuring peak solar panel performance. The device features a built-in lithium ion battery and a large high-contrast LCD screen that remains easily readable even in direct sunlight. The included MC4 PV plugs and clips simplify the process of diagnosing and troubleshooting solar panels, making it both straightforward and efficient.
Specifications
| Highlighted | |
|---|---|
| Safety Category | IEC 61010-1 |
| Measurement & Analysis | |
|---|---|
| Current at MMPT Point [Imax] | Range 0 A to 30 A / Accuracy ±5% |
| Device Temperature Protection | Range 0°C to 60°C / Accuracy ±3% |
| Maximum Power Value [Pmax] | Range 0 W to 800 W / Accuracy ±5% |
| Measuring Rate | 3 samples per second |
| Open Circuit Voltage [VOC] | Range 0 V to 60 V / Accuracy ±1% |
| Short Circuit Current [ISC] | Range 0 A to 30 A / Accuracy ±1% |
| Voltage at MMPT Point [Vmax] | Range 0 V to 60 V / Accuracy ±5% |
| User Interface | |
|---|---|
| Display | TFT Display/Backlit White LED screen |
| Power | |
|---|---|
| Battery | Rechargeable, 3.7 V / 1000 mAh, Li-ion Battery |
| Battery Life | Approx. 5 hours |
| General | |
|---|---|
| Size [L x W x H] | 151.6 mm × 72.5 mm × 38 mm (5.97 in × 2.85 in × 1.50) |
| Weight | 206 g (0.45 lbs) |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, RCM, FCC |
| EMC | EN61326-1 |
| Operating Ambient Temperature and Relative Humidity [RH] | −10°C to 50°C (14°F to 122°F), <80% RH |
| Safety Category | IEC 61010-1 |
| Storage temperature and relative humidity [RH] | −20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries) |
| Warranty | Limited 3-Year Warranty https://www.flir.com/testwarranty |
| Accessories | |
|---|---|

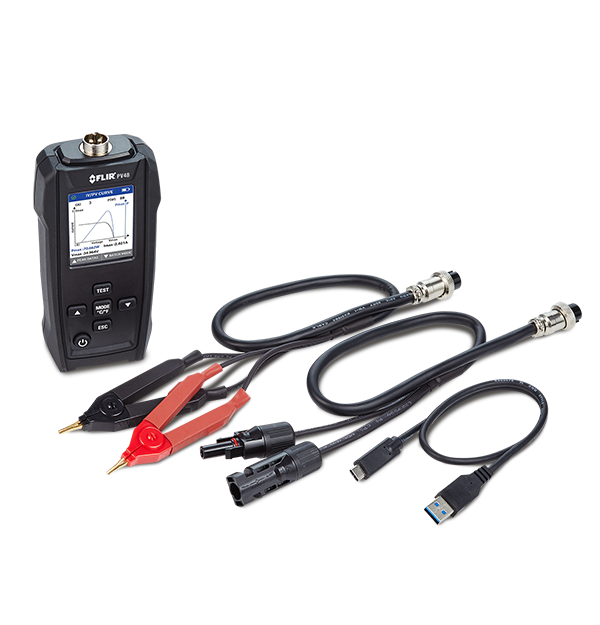

| Accessories In the Box | 1 × Set of Alligator Clips 1 × Set of MC4 Test leads USB Cable FLIR Quick Start Guide |
Resources & Support
Datasheet
FLIR PV48 Datasheet
User Manual
FLIR PV48 User Manual
Quick Start Guide
FLIR PV48 Quick Start Guide
