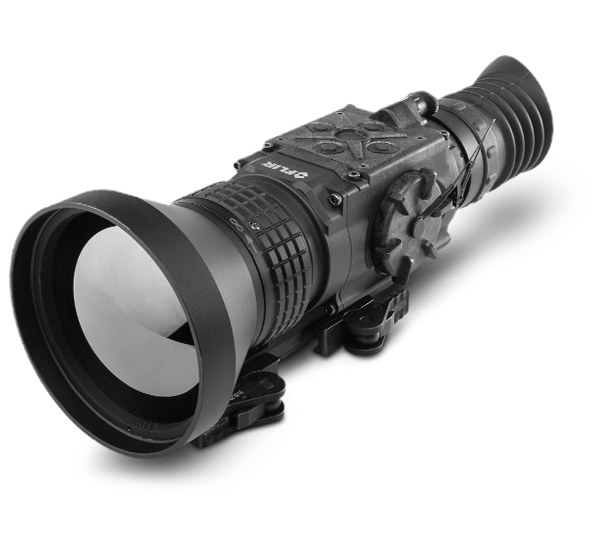

FLIR ThermoSight® PRO PTS736
Thermal Imaging Weapon Sight
Powered by the breakthrough FLIR Boson core, the ThermoSight Pro Series® PTS736 weapon sight sets the standard for thermal detection and classification. Featuring a 12 µm pixel pitch sensor and 75mm lens, the PTS736 produces brilliant, clean thermal imaging with a 3° × 2.5° field of view for long-range targets. The entire ThermoSight Pro Series offers an uncompressed video signal, a high definition display, and shot-activated video recording.
Specifications
| Highlighted | |
|---|---|
| Optical Magnification | 6x |
| Field of View | 3° x 2.5° |
| Sensor & Optical | |
|---|---|
| Boresight Adjustment Type | Digitally Controlled |
| Core | FLIR 12µm BOSON |
| Detector Type | 320 x 256 VOx Microbolometer |
| Diopter Adjustment Range | -5 to +5 dpt |
| Eye Relief | 45 mm |
| Field of View | 3° x 2.5° |
| Focus Range | 10m to infinity |
| Image Processing | FLIR Proprietary Digital Detail Enhancement™ |
| Lens System | 75 mm; F/1.0 |
| Optical Magnification | 6x |
| Environmental & Approvals | |
|---|---|
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power | |
|---|---|
| Battery Life [Operating] | Up to 4 hr |
| Battery Type | 2 CR123A 3V Lithium batteries |
| External Power | Through USB-C port (5Vdc) |
| File Storage & Communication | |
|---|---|
| Internal Memory | Up to 2.5 hours of recorded video or up to 1,000 pictures |
| USB_C Connector | Digital Video Out, Laser Range Finder Connections |
| Video Output | Digital Video |
| UI-UX | |
|---|---|
| Control Panel Buttons | Configures Operational Settings: Display Brightness Control Image Palette Control Digital Zoom Control Reticle Color Control Reticle Pattern Control Boresighting Adjustment On-Screen Menu Navigation |
| Display | Quad-VGA (1280 x 960) FLCOS |
| Operation Switch | On/ Off/ Standby Mode |
| Polarity | White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, Outdoor Alert |
| Reticle Colors | Black, White, Red, and Cyan |
| Video Refresh Rate | 60 Hz |
| System Overview | |
|---|---|
| Digital Zoom | 2x, 4x |
| Height of the Scope Axis above Rail | 1.89 in (48 mm) |
| Package Includes | Thermal Weapon Sight, CR123A Battery (2), Battery Cassette, Spare Battery Cassette, USB to USB Type C Cable (3'), Lens Cloth, Quick Start Guide, and Hard Carrying Case |
| Reticle Type | Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle" |
| Size [L x W x H] | 11.1" × 3.5" × 3.7" (283 x 89 x 93 mm) |
| Weapon Mount Type | Picatinny, MIL-STD 1913, and Weaver Rails |
| Zoom | 1×, 2×, 4× |
| Physical | |
|---|---|
| Color [housing] | Black |
| Weight | 0.97 kg (2.14 lbs) |
Resources & Support
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Datasheet
ThermoSight Pro Datasheet
Tech Note
The Perfect Reticle - Tech Note
Tech Note
Your Perfect Palette
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
