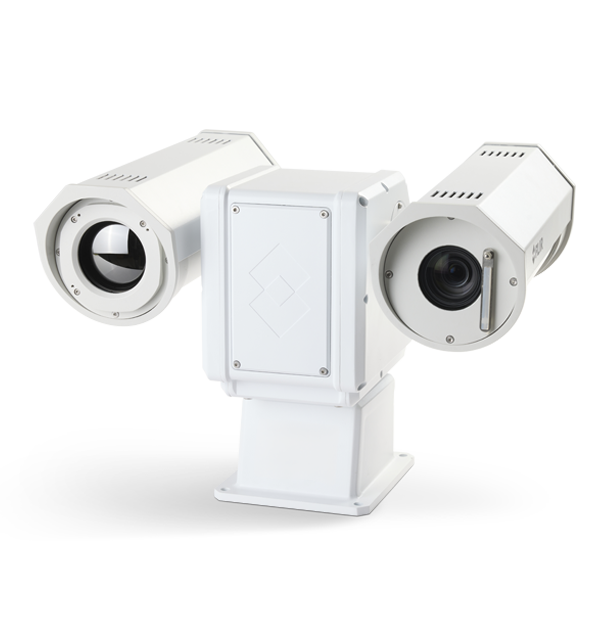

FLIR PT-Series AI SR
Visible 4K and Thermal Pan/Tilt Short Range Security Camera
Product Variations
The FLIR PT-Series AI SR is our most advanced multi-sensor security camera, featuring a high-performance <25 mK NETD uncooled thermal sensor with 640 × 512 resolution, a 4K visible-light imaging sensor with 25× optical zoom and outstanding low-light performance. Enhanced with FLIR Fusion AI video analytics, the PT-Series AI SR offers reliable edge-based detection and classification of human and vehicle targets at extended ranges. Combined with FLIR Nexus®, the PT-Series AI SR allows you to seamlessly track objects or people and provides uninterrupted target tracking—even beyond a radar’s field of view. The PT-Series AI SR integrates easily with other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
The FLIR PT-Series AI-SR combines a high-sensitivity <25 mK uncooled thermal sensor with up to 4× continuous zoom and a 4K visible-light camera featuring 25× optical zoom and superior low-light performance. This powerful dual-sensor design ensures clear, actionable imaging in complete darkness, bright sunlight, and challenging weather.
Equipped with FLIR Fusion AI video analytics, the PT-Series AI-SR delivers real-time object detection, classification of people and vehicles, right at the edge. This reduces false alarms, improves situational awareness, and enables faster, more accurate responses without relying on external processing.
Fully integrated with FLIR Nexus®, the PT-Series AI-SR enables seamless coordination with FLIR radars and other thermal and visible cameras to maintain continuous tracking—even beyond a radar’s field of view. With high-speed, precision pan/tilt performance and 360° coverage, it’s ideal for wide-area surveillance and perimeter protection.
Specifications
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | FCC; CE Marked; RoHS; IP66; ONVIF Profile S, G, T, WEEE |
| Cyber Security | |
|---|---|
| Security | ISO27001 certified IEEE 802.1x TLS/HTTPS User Authentication Access control via firewall User credentials with policy enforcement Digest Authentication |
| Environmental | |
|---|---|
| De_Icing_Anti_Icing | MIL-STD-810F, Method 521.1; De-Icing |
| Humidity | 0 to 95% relative |
| IP Rating [dust and water ingress] | IP66 |
| Operating Temperature Range | -40°C to 70°C (-40°158°F) cold start |
| Shock | MIL-STD-810F “Transportation” |
| Storage Temperature Range | -55°C to 85°C (-67°F to 185°F) |
| Vibration | IEC 60068-2-27 |
| General | |
|---|---|
| Dimensions [L x W x H] | 348× 467 × 326 mm (13.7, 18.4, 12.8 in) |
| Effective Resolution | 327,680 pixels (640 × 512) |
| Focus Range | Athermalized, Focus Free |
| Input Voltage | 24 V DC: 65 W (max w / o heaters) 195 W (max w heaters) |
| Weight | ~37 lb (16.8 kg): configuration dependent |
| Zoom | Visual: 25x optical zoom |
| Measurement & Analysis | |
|---|---|
| Programmable Presets | 256 |
| Thermal Sensitivity | <25 mK at 25°C, F/10 |
| PTZ | |
|---|---|
| Pan Angle_Speed | Continuous 360°; 0.1° to 60°/ sec |
| Tilt Angle_Speed | 90° to -90°; 0.1° to 30°/ sec |
| System Integration | |
|---|---|
| Ethernet | Yes |
| External Analytics Compatible | Yes |
| Network APIs | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Supported Protocols | IPv4, HTTP, HTTPS, UPnP, DNS,NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X |
| Thermal Camera | |
|---|---|
| Array Format [Thermal] | 640 × 512, long-life, uncooled VOx microbolometer |
| f number | F1.6 to F4.8 |
| Focal Length | 6.5 mm (wide) to 162.5 mm (tele) |
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers |
| Lens Field of View | 59.0° (wide) to 2.36° (tele) |
| Spectral Range [Thermal] | 7.5 μm to 13.5 μm |
| Thermal AGC Region of Interest [ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
| Visible Camera | |
|---|---|
| f number | F1.6 to F4.8 |
| Focal Length | 6.5 mm (wide) to 162.5 mm (tele) |
| Lens Field of View | 59.0° (wide) to 2.36° (tele) |
| Low Light Sensitivity | Color: 0.28 lx (F1.6, AGC on, 1/30s) |
| Sensor Illumination | Back Light Compensation |
| Sensor type, Daylight | 4K (2160p), 1/1.8-type STARVIS II CMOS |
| WDR | 120 dB |
| Video & Recording | |
|---|---|
| Video Compression | Two independent channels of H.265, H.264 & M-JPEG for each sensor |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
FLIR DNA Software - Version 2.3.0.35
Datasheet
FLIR PT-Series AI SR Datasheet
AE Spec
FLIR PT-Series AI A&E Specifications
User Manual
FLIR PT-Series AI SR Installation & User Guide
