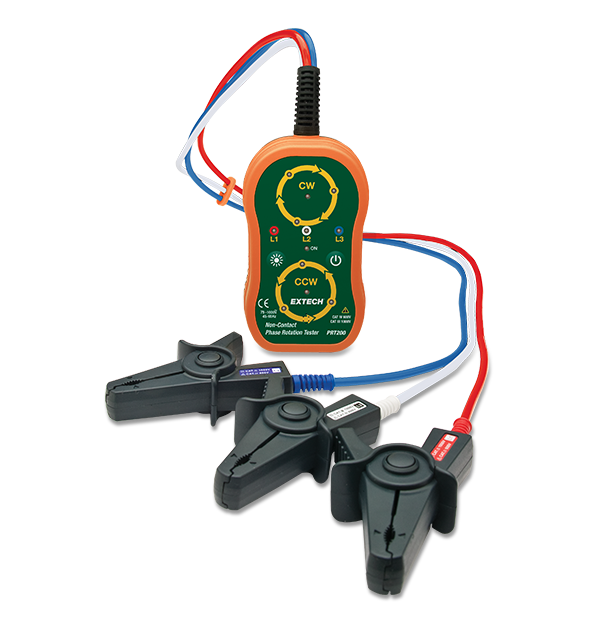

The Extech PRT200 is a non-contact phase sequence tester with a 75 to 1000 VAC input voltage and 45 to 65 Hz frequency range. This tester features LEDs that indicate whether each phase is live and that phase's orientation; a beeper sounds intermittently when correct phase is detected and continuously if phase is reversed. An adjustable Hi/Lo LED brightness switch makes it easy to take measurements in dimly lit areas or sunlight, while the CAT IV 600 Volt safety rating plus fully-insulated, wide-jaw alligator clips mean it's appropriate for industrial applications. The PRT200 comes complete with a year warranty, three built-in 30 in. test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.
Specifications
| General | |
|---|---|
| AC Voltage | 75 to 1000VAC |
| Frequency | 45 to 65Hz |
| Max Conductor Size | 33mm (1.3") diameter |
| Measurement Principle | Static induction |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.7 × 2.7 × 1.5" (118 × 69 × 38mm) |
| Power | 4 × AA (1.5V) batteries |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 13oz (370g) |
Resources & Support
User Manual
Extech PRT200 User Manual
Datasheet
Extech PRT200 Datasheet
Certification
Extech PRT200 Declaration of Conformity
User Manual
Extech PRT200 User Manual GB
