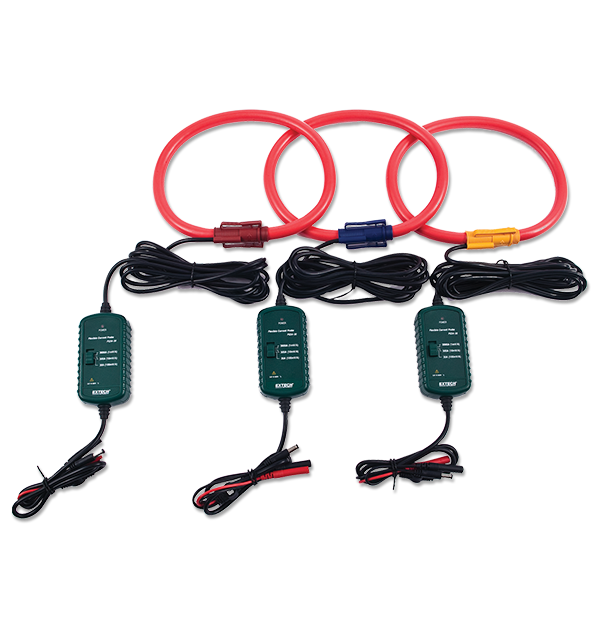

The Extech PQ34-30 is a set of 3000 A Flexible Current Probes for PQ3450/PQ3470 power quality analyzers. It has a 61 cm (24 in) length for wrapping around bus bars and wire bundles. Switch between 3 ranges: 3000 A, 300 A, and 30 A.
Specifications
| General | |
|---|---|
| AC Current | 30A, 300A and 3000A, switch selectable |
| AC Current Basic Accuracy | ±1% full scale (50/60Hz) |
| Cable Length | 3.4 meters (11.2 feet) |
| Frequency Bandwidth | 45 to 400 Hz. |
| Jaw Size | Flexible 23.6" (600mm) |
| Linearity_Hysteresis | ±0.2% of reading from 10% to 100% of range |
| Minimum Load | 100 KΩ for specified accuracy |
| Output Coupling | AC coupled. |
| Output Sensitivity | 100mV/A (30A range), 10mV/A (300A range), 1mV/A (3000A range) |
| Phase Error | < ±1° (50/60Hz) |
| Additional Details | |
|---|---|
| Dimensions | 4.1 × 2.2 × 1.3" (105 × 56.5 × 33 mm) |
| Power | 8V ±1V (supplied from meter) |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 480 g (1.06 LB) |
