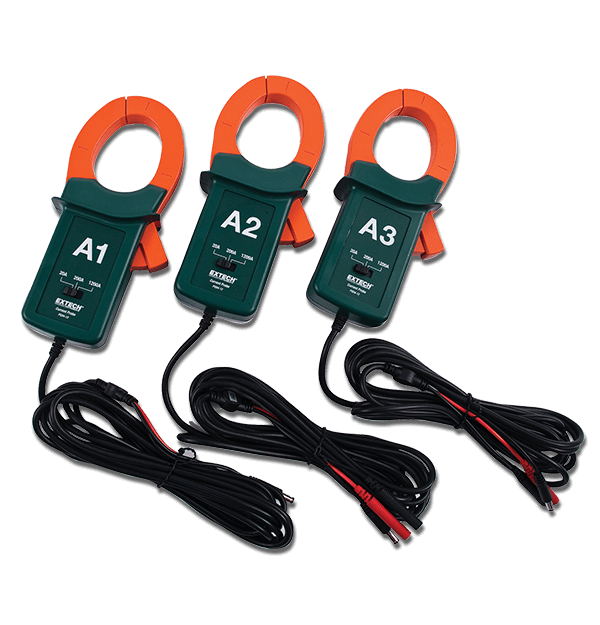

The Extech PQ34-12 is a set of 1200 Amp Current Clamp Probes. For use with the PQ3450 and PQ3470 analyzers. Featuring a 50 mm (2 in) jaw size, this product comes with three current clamp probes and a year warranty.
Specifications
| General | |
|---|---|
| AC Current | 20A, 200A and 1200A, switch selectable |
| AC Current Basic Accuracy | ±1% full scale (50/60Hz) |
| Cable Length | 4 meters (13.17 feet) |
| Frequency Bandwidth | 45 to 400 Hz. |
| Jaw Size | 50 mm (2.0 inch) |
| Minimum Load | 100 KΩ for specified accuracy |
| Output Coupling | AC coupled. |
| Output Sensitivity | 10mV/A (20A range), 1mV/A (200A range), 0.1mV/A (1200A range) |
| Phase Error | < ±1° (50/60Hz) |
| Additional Details | |
|---|---|
| Dimensions | 8.3 × 2.5 × 1.3" (210 × 64 × 33 mm) |
| Power | 8V ±1V (supplied from meter) |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 490 g (1.08 LB) |
Resources & Support
User Manual
Extech PQ34-12 User Manual
Certification
Extech PQ34-12 Declaration of Conformity
