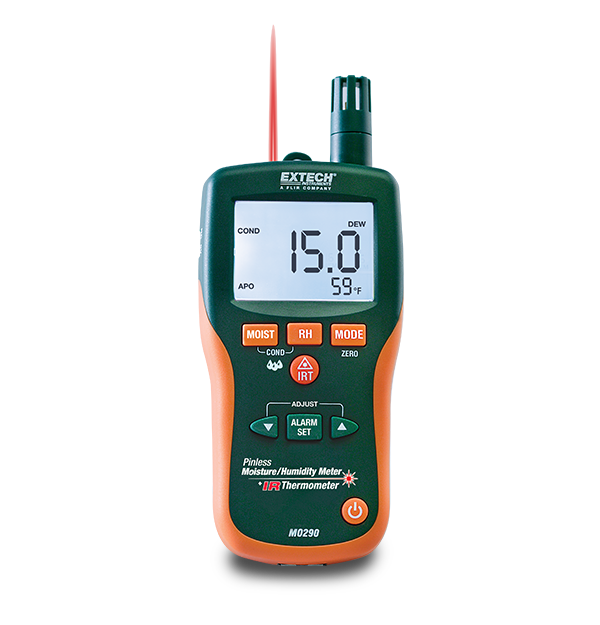

Extech MO290
Pinless Moisture Psychrometer + IR
The Extech MO290 combines a pin/pinless moisture meter with a built-in infrared thermometer, allowing you to measure temperature, humidity, dew point, vapor pressure, and much more. Comes complete with pin moisture probe, 9-Volt battery, and case.
Specifications
| General | |
|---|---|
| Dew Point | MO290-NISTL_S: -22 to 199 °F (-30 to 100 °C) MO290_S: -22 to 199 °F (-30 to 100 °C) |
| Distance to Target Ratio | 8:1 |
| Emissivity | 0.95 fixed |
| Measurement Depth | up to 0.75" (19mm) |
| Relative Humidity | 0 to 100% |
| Relative Humidity Basic Accuracy | MO290-NISTL_S: ±3% MO290_S: ±3% |
| Relative Moisture Content Max Resolution [Pinless] | 0.1 |
| Relative Moisture Content [Pinless] | 6 to 99.9 |
| Sensor Type | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| Temperature [Air] | MO290-NISTL_S: -20 to 170 °F (-29 to 77 °C) MO290_S: -20 to 170 °F (-29 to 77 °C) |
| Temperature [Air] Basic Accuracy | MO290-NISTL_S: ±3.6°F (2.0°C) MO290_S: ±3.6°F (2.0°C) |
| Temperature [Air] Max Resolution | MO290-NISTL_S: 0.1°F/°C MO290_S: 0.1°F/°C |
| Temperature [IR] Basic Accuracy | MO290-NISTL_S: -4 to 392 °F (-20 to 200 °C) MO290_S: -4 to 392 °F (-20 to 200 °C) |
| Temperature [IR] Max Resolution | MO290-NISTL_S: ±3.5% or ±9°F(4.5°C) whichever greater MO290_S: ±3.5% or ±9°F(4.5°C) whichever greater |
| Temperature [RTD] | MO290-NISTL_S: 0.1°F/°C MO290_S: 0.1°F/°C |
| Vapor Pressure | 0 to 20.0kPA |
| Water Vapor | 0 to 999gpp (0 to 160g/kg) |
| WME Moisture Content Basic Accuracy [Pin] | MO290-NISTL_S: ±5% MO290_S: ±5% |
| WME Moisture Content Max Resolution [Pin] | 0.1 |
| WME Moisture Content [Pin] | 0 to 99.9% |
| Additional Details | |
|---|---|
| Certifications | MO290-NISTL_S: CE, NIST (limited to certain functions) MO290_S: CE |
| Dimensions | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 7.4oz (210g) |
