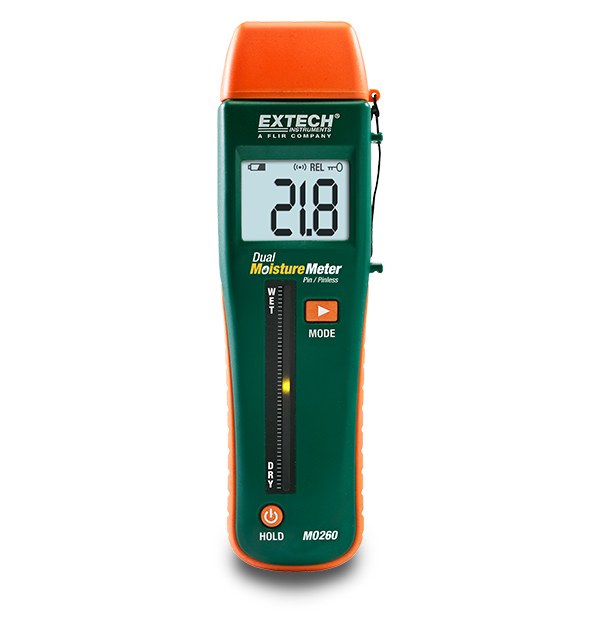

The Extech MO260 is a combination pin/pinless moisture meter that can both measure the relative moisture in wood and other building materials using pinless technology and determine percentage of moisture in sheetrock and other materials using the direct pin method. Measurements are displayed on a digital LCD with backlighting and a tri-color LED bargraph. Pinless non-invasive measurement depth to 22 mm (0.75 in) below the surface. Complete with 9V battery, replacement pins, protective cap, and pouch case.
Specifications
| General | |
|---|---|
| Relative Moisture Content Max Resolution [Pinless] | 0.1 |
| Relative Moisture Content [Pinless] | 0 to 99.9 |
| Sensor Type | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| WME Moisture Content Max Resolution [Pin] | 0.10% |
| WME Moisture Content [Pin] | 6.0 to 94.8% |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8 × 2.3 × 1.7" (203 × 58.4 × 43.2mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 7.2oz (204g) |
Resources & Support
User Manual
Extech MO260 User Manual
Certification
Extech MO260 Declaration of Conformity
Datasheet
Extech MO260 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
