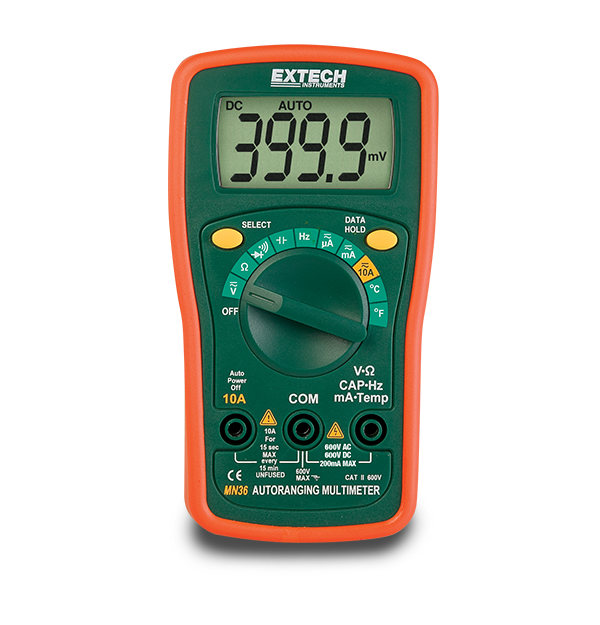

The Extech MN36 digital multimeter is compact but still packed with features. Capable of measuring AC and DC voltage up to 600 volts, the MN36 is autoranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Comes with protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads.
Specifications
| General | |
|---|---|
| AC Current | 10A |
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Capacitance | 100µF |
| Capacitance Max Resolution | 0.001nF |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.2% |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Frequency | 5MHz |
| Frequency Basic Accuracy | ±1.0% |
| Frequency Max Resolution | 0.01Hz |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature [Type K] Max Resolution | -4 to 1400°F (-20 to 750°C) |
| Temperature [Type N] | ±(1% of reading + 4°) |
| Temperature [Type N] Basic Accuracy | 1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 5.4oz (153g) |
