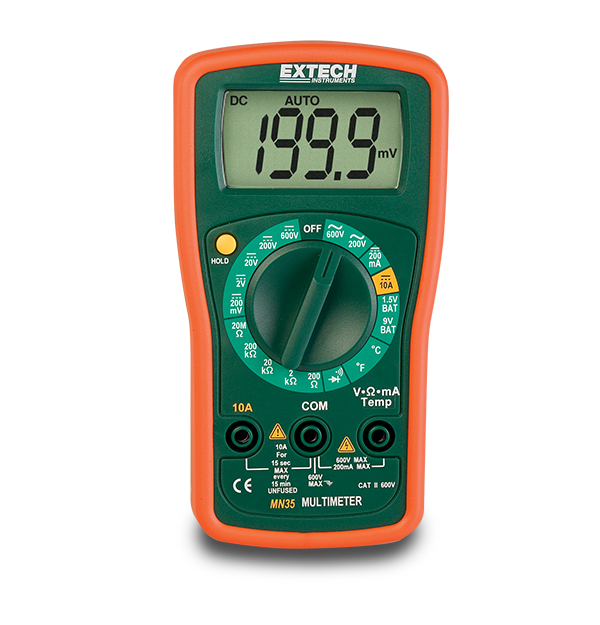

The MN35 is a convenient mini size multimeter with protective rubber holster and tilt stand. Manual ranging, measures AC and DC Voltage to 600V, Resistance with Continuity and Diode functions, DC Current to 10A, Temperature, and 9V/1.5V Battery test. Includes protective rubber holster, 9V battery, test leads and Type K thermocouple probe.
Specifications
| General | |
|---|---|
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Battery Test | 9V and 1.5V |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 0.1mA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Resistance | 20MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature [Type K] Max Resolution | -4 to 1400°F (-20 to 750°C) |
| Temperature [Type N] | ±(1% of reading + 4°) |
| Temperature [Type N] Basic Accuracy | 1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Power | 1 × 9V battery |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 5.4oz (153g) |
Resources & Support
User Manual
Extech MN35 User Manual
Datasheet
Extech MN35-MN36 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
