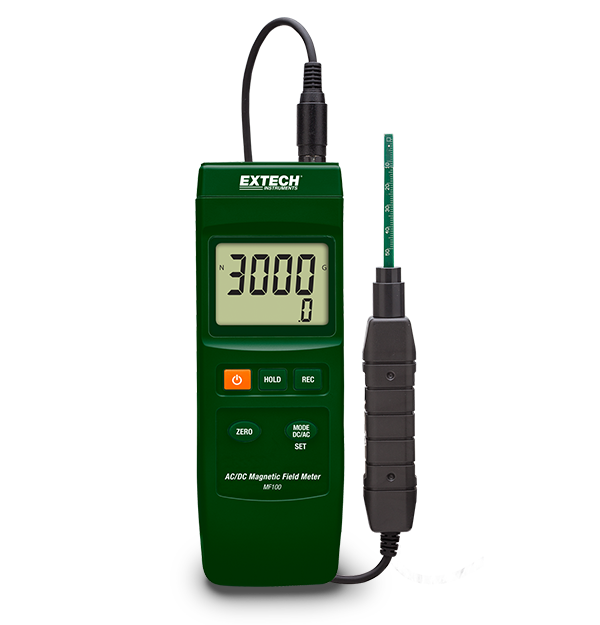

The MF100 is an AC/DC Magnetic Field Meter. This magnetic field meter features automatic temperature compensation with Hall effect sensor. Product complete with uniaxial magnetic probe sensor and protective cover, 9V battery and hard carrying case.
Specifications
| General | |
|---|---|
| Electromagnetic Field [Gauss] | AC: 1500.0G, 15,000G; DC: 3000.0G, 30,000G |
| Electromagnetic Field [Gauss] Basic Accuracy | AC: ±(5% of reading + 20 digits); DC: ±(5% of reading + 10 digits) |
| Electromagnetic Field [Gauss] Max Resolution | 0.1G, 1G |
| Electromagnetic Field [Tesla] | AC: 150.00mT, 1500.0mT; DC: 300.00mT, 3000.0mT |
| Electromagnetic Field [Tesla] Basic Accuracy | AC: ±(5% of reading + 20 digits); DC: ±(5% of reading + 10 digits) |
| Electromagnetic Field [Tesla] Max Resolution | 0.01mT, 0.1mT |
| Frequency Bandwidth | 50Hz/60Hz |
| Number of Axes | Uniaxial |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.8 × 2.7 × 1.2" (195 × 68 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 9.5oz (270g) |
