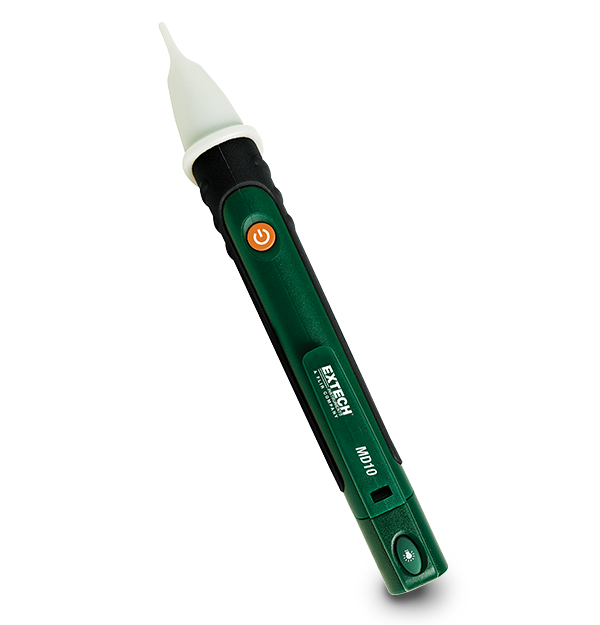

The MD10 is a non-contact magnet detector with built in flashlight. A Blue LED lights up indicating the presence of a magnetic field including AC, DC and permanent magnets without contact. Applications include, testing audio speakers, Troubleshoot solenoid valves in pneumatic and hydraulic control equipment, testing relays with coils and electrically controlled solenoid valves in vehicles and machinery. Complete with two AAA batteries.
Specifications
| General | |
|---|---|
| Magnetic Field | 63, 98, 401, 810 (Henry units) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.25 × 0.8 ×1" (159 × 21 × 25mm) |
| Power | 2 x AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 1.7 oz (48g) |
Resources & Support
Certification
Extech MD10 Declaration of Conformity
Datasheet
Extech MD10 Datasheet
User Manual
Extech MD10 User Manual
