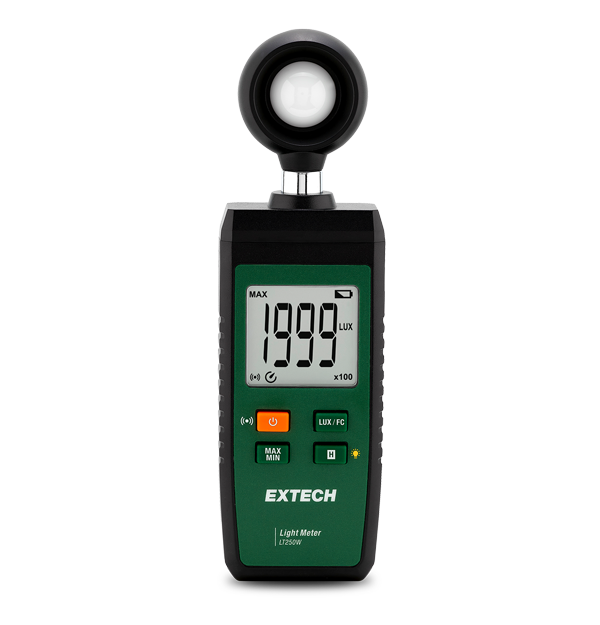

The LT250W is a compact light meter with Bluetooth® connectivity, which allows building and maintenance professionals to view and share light intensity data directly from a mobile device using the free ExView app. With the capability to capture data, display trends, set visual and audio alarms, and create and send reports, users can gain deeper insights on workplace comfort and building health. The LT250W is part of the Extech 250W Connected Series of products that can improve your ability to evaluate problems and report on them from the field. This allows you to improve the speed and quality of decisions to address critical issues immediately.
Specifications
| General | |
|---|---|
| Light [Foot Candle] | 0 to 18,571 Fc |
| Light [Foot Candle] Basic Accuracy | ±4% of reading (<9,999 Fc); ±5% of reading (≥10,000 Fc) |
| Light [Foot Candle] Max Resolution | 1 Fc (<9,999 Fc); 10 Fc (≥10,000 Fc) |
| Light [Lux] | 0 to 199,900 Lux |
| Light [Lux] Basic Accuracy | ±4% of reading (<9,999 Lux); ±5% of reading (≥10,000 Lux) |
| Light [Lux] Max Resolution | 1 Lux (<9,999 Lux); 10 Lux (≥10,000 Lux); 100 Lux (≥100,000 Lux) |
| Sampling Rate | 0.5 sec |
| Wireless Connectivity | Bluetooth® (via ExView iOS/Android mobile app) |
| Wireless Transmission Range | up to 90 m line of sight |
| Additional Details | |
|---|---|
| Certifications | CE, FCC, UKCA |
| Dimensions | 6.9 × 2.1 × 1.1 in (176 × 53 × 28 mm) |
| Display | 5-digit (99999-count) backlit segment LCD display |
| Operating Conditions | 32 to 104°F (0 to 4°C),≤80% RH |
| Power | 3 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 3.2 oz (90 g) |
Resources & Support
Quick Start Guide
Extech LT250W Quick Start Guide
Datasheet
Extech LT250W Datasheet
User Manual
Extech LT250W User Manual
User Manual
Extech ExView Mobile App User Manual
User Manual
Extech LT250W User Manual GB
User Manual
Extech ExView Mobile App User Manual GB
Certification
Extech LT250W Declaration of Conformity
