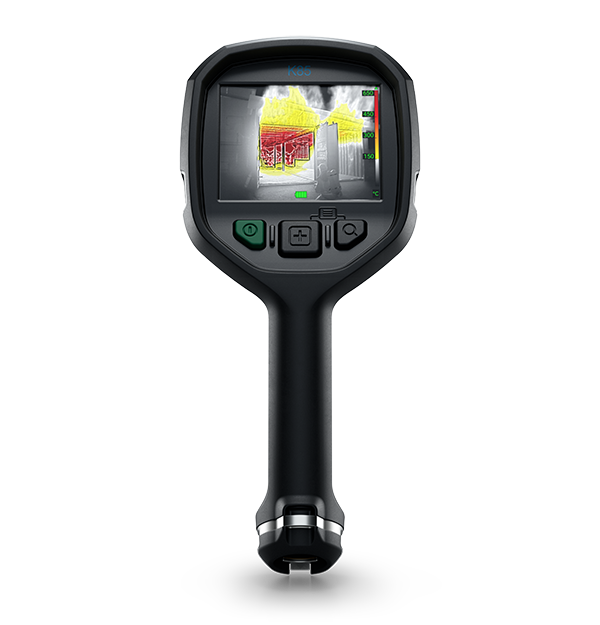

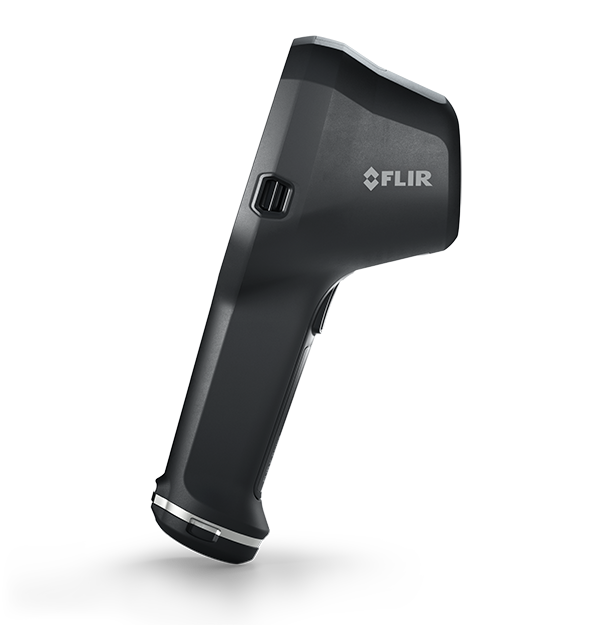

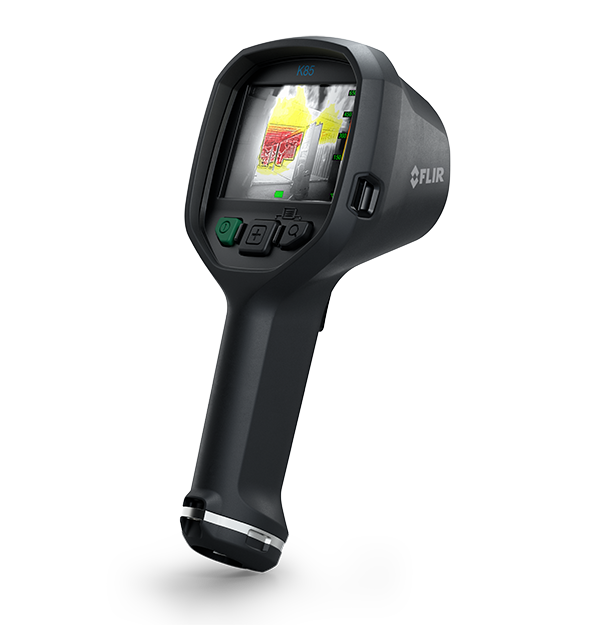

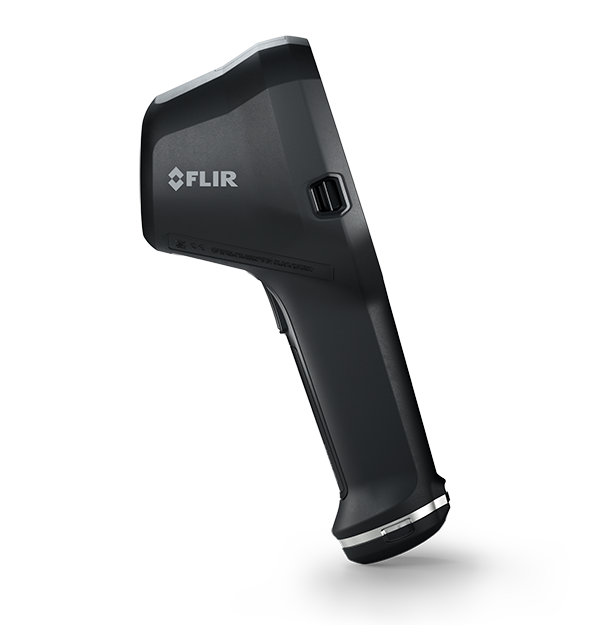

The thoughtfully-designed FLIR K85 TIC improves firefighter awareness with high-resolution imaging and an innovative single-range solution that reveals greater detail in smoke-filled and high-heat environments without concerns about delays, image freeze, or loss of information.
This thermal imaging camera helps crews easily spot victims, track fire behavior, and assess structural risks—all without losing vision when conditions change. Plus, the K85 improves efficiency through its seamless wireless connection to the new FLIR Responder App for camera configuration, media handling, and live-streaming that allows departments to train and document missions with ease.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 × 480 |
| Display | 4" LCD, 640 × 480, backlit |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| Imaging & Optical | |
|---|---|
| Contrast optimization | Digital enhancement, Flexible Scene Enhancement (FSX®) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view [FOV] | 53° × 40° |
| Image Frequency | 30 Hz |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| IR Resolution | 640 × 480 |
| Non_radiometric IR video recording | MPEG4 to internal flash memory |
| Non_radiometric IR video streaming | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Pitch | 12 µm |
| Spectral Range | 7.5 to 14 µm |
| Thermal Sensitivity_NETD | <60 mK |
| Zoom | 2× digital zoom |
| Environmental & Certifications | |
|---|---|
| Drop | 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31) |
| Encapsulation | IP67 (IEC 60529) |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95 |
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | 150°C (302°F): 15 min 260°C (500°F): 5 min |
| Relative Humidity | 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| Power | |
|---|---|
| Battery capacity | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery operating time | Approximately 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-Ion |
| Battery voltage | 3.7 V |
| Charging system | Desktop 2-bay charger Optional in-truck charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | <3 h to capacity enough for 3 h operation |
| Power Management | Automatic shutdown and sleep mode |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| General | |
|---|---|
| Package Includes | K85 infrared camera Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| User Interface | |
|---|---|
| Display | 4" LCD, 640 × 480, backlit |
| Communication & Data Storage | |
|---|---|
| Image Storage | Standard JPEG, stored in the camera and the Flir Responder app |
| Image Storage Capacity | 200 files in total |
| Interfaces | Update via OTA (Wi-Fi using the Flir Responder app) Legacy support for updates from PC and data transfer to and from PC |
| Storage Media | Internal flash memory |
| USB | USB-C |
Resources & Support
Datasheet
FLIR Kxx-Series Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
