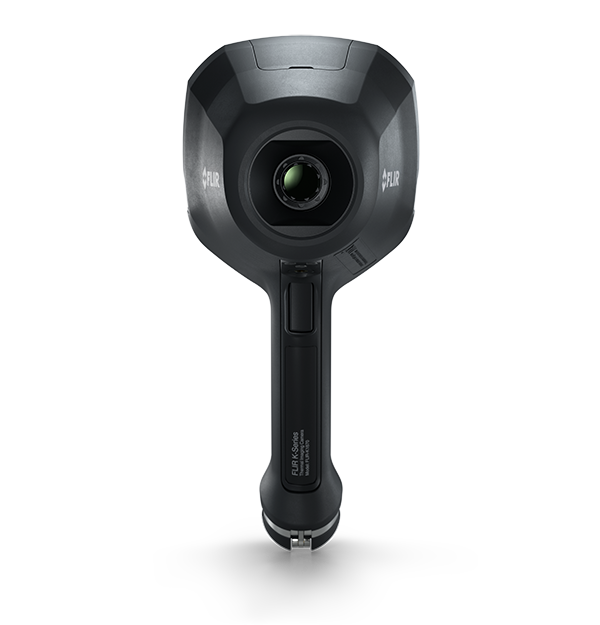

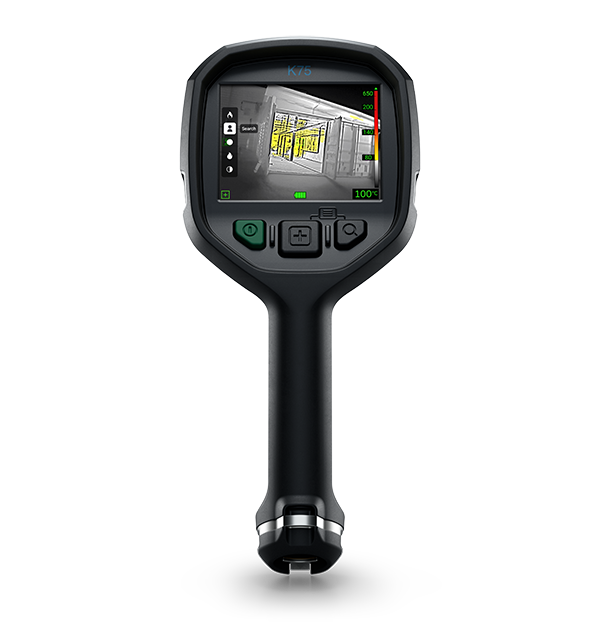

FLIR reaches a new level of innovation with the thoughtfully-designed K75 TIC. This thermal firefighting camera not only helps first responders see through smoke and navigate fires safely: it also improves work and training efficiency thanks to its seamless connection to the new FLIR Responder App.
Offering a new single-gain solution for continuous, freeze-free imaging, the K75 reveals dangers such as overheated doors, hidden fire spread, or holes in the floor—giving crews the confidence to move faster and safer in smoke-filled environments. Wireless connectivity to the new Responder App ensures crews can configure cameras efficiently, stream live video for training, and share mission data after the call.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 |
| Display | 4" LCD, 640 × 480, backlit |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| Imaging & Optical | |
|---|---|
| Contrast optimization | Digital enhancement, Flexible Scene Enhancement (FSX®) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view [FOV] | 53° × 40° |
| Image Frequency | 30 Hz |
| Image Modes | Basic, Search, Detection, High Heat, White Hot |
| IR Resolution | 320 × 240 |
| Non_radiometric IR video recording | MPEG4 to internal flash memory |
| Non_radiometric IR video streaming | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| Pitch | 12 µm |
| Spectral Range | 7.5 to 14 µm |
| Thermal Sensitivity_NETD | <60 mK |
| Zoom | 2× digital zoom |
| Environmental & Certifications | |
|---|---|
| Drop | 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31) |
| Encapsulation | IP67 (IEC 60529) |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95 |
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | 150°C (302°F): 15 min 260°C (500°F): 5 min |
| Relative Humidity | 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| Power | |
|---|---|
| Battery capacity | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery operating time | Approximately 4 hours @ 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-Ion |
| Battery voltage | 3.7 V |
| Charging system | Desktop 2-bay charger Optional in-truck charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | <3 h to capacity enough for 3 h operation |
| Power Management | Automatic shutdown and sleep mode |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Object Temperature Range | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| General | |
|---|---|
| Package Includes | K75 infrared camera Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| User Interface | |
|---|---|
| Display | 4" LCD, 640 × 480, backlit |
| Communication & Data Storage | |
|---|---|
| Image Storage | Standard JPEG, stored in the camera and the Flir Responder app |
| Image Storage Capacity | 200 files in total |
| Interfaces | Update via OTA (Wi-Fi using the Flir Responder app) Legacy support for updates from PC and data transfer to and from PC |
| Storage Media | Internal flash memory |
| USB | USB-C |
