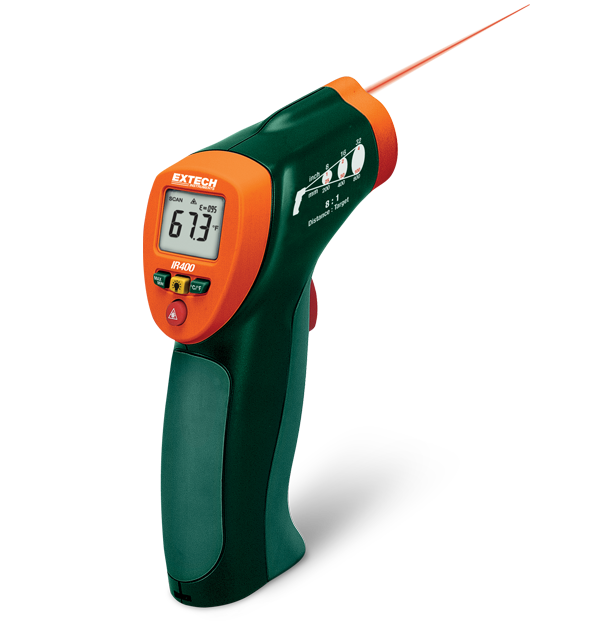

The IR400 is a Compact thermometer capable of measurements up to 630°F (332°C) with the built-in laser pointer that identifies target area and improves aim. Backlighting illuminates display for taking measurements at night or in areas with low background light levels. Fixed 0.95 emissivity covers 90% of surface applications. Complete with 9-Volt battery and case.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 8:1 |
| Emissivity | 0.95, fixed |
| Targeting | single laser |
| Temperature [IR] Basic Accuracy | ±7.5°F(4°C) at -4°F to 20°F (-20°C to -7°C) ±(2% of reading +4°F(2°C) at 20°F to 630°F (-7°C to -343°C) |
| Temperature [IR] Max Resolution | 0.1 °F/°C at -4°F to 630°F (-20°C to -343°C) |
| Additional Details | |
|---|---|
| Certifications | IR400-NIST_S: CE, NIST IR400_S: CE |
| Dimensions | 3.2 × 1.6 × 6.3" (82 × 41.5 × 160mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 6.3oz (180g) |
Resources & Support
User Manual
Extech IR400 User Manual
Certification
Extech IR400 Declaration of Conformity
Datasheet
Extech IR400 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
