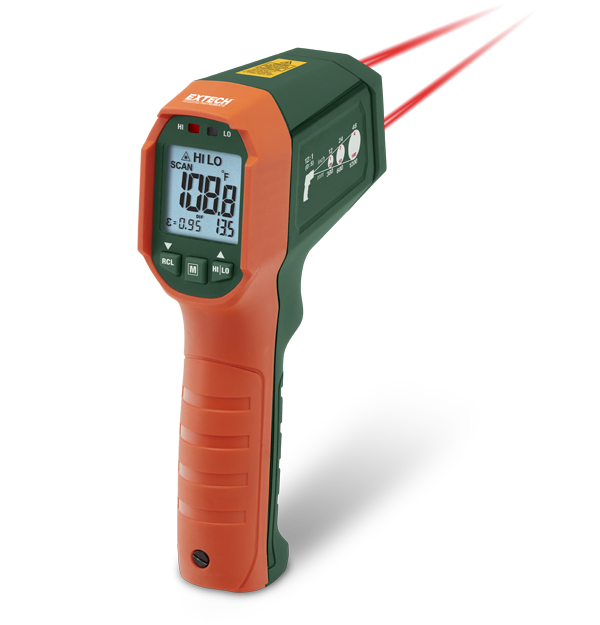

Rugged design with Waterproof (IP65) and 9.8ft (3m) drop-proof protection, Extech IR320 provides fast and accurate temperature measurements up to 1202°F (650°C). Its dual guided laser shows the target area between the two points at a 12:1 distance to target ratio. It has programmable High and Low Alarms with Red (HI) and Blue (LOW) visual LED alert. The Lock function allows for continuous measurement.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Targeting | dual laser |
| Temperature [Air] Max Resolution | 0.1 °F/ °C |
| Temperature [IR] Basic Accuracy | -4 to 1202 °F (-20 to 650 °C) |
| Temperature [IR] Max Resolution | ±(1% of reading + 2 °F/1 °C) |
| Additional Details | |
|---|---|
| Certifications | IR320-NIST_S: CE, NIST IR320_S: CE |
| Dimensions | 7.4 × 4.6 × 2.2" (189 × 118 × 55mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 10.3oz (292g) |
Resources & Support
User Manual
Extech IR320 User Manual GB
Certification
Extech IR320 Declaration of Conformity
Datasheet
Extech IR320 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
