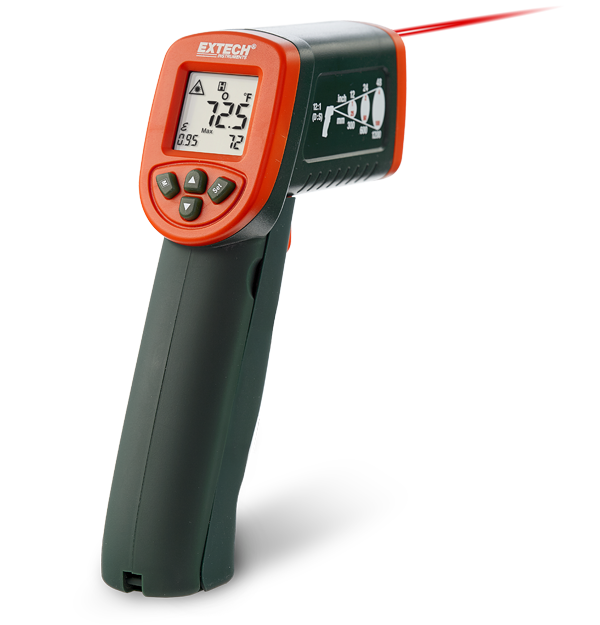

Compact non-contact InfraRed (IR) Thermometer measures up to 1112°F (600°C) with built-in laser pointer to identify target area and improve aim. Type K input allows for high temperature measurements up to 1832°F (1000°C). Builtin temperature sensor also measures Air Temperature. Adjustable emissivity feature allows for a higher accuracy when measuring temperature on various surfaces.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.05 to 1.00, adjustable |
| Targeting | single laser |
| Temperature [Air] | -4 to 158 °F (-20 to 70 °C) |
| Temperature [Air] Basic Accuracy | ±2% of reading or ±4 °F/2 °C |
| Temperature [Air] Max Resolution | 0.1 °F/ °C |
| Temperature [Contact] | -58 to 1832 °F (-50 to 1000 °C) |
| Temperature [Contact] Basic Accuracy | ±2% of reading or ±4 °F/2 °C |
| Temperature [Contact] Max Resolution | 0.1 °F/ °C |
| Temperature [IR] Basic Accuracy | -58 to 1112 °F (-50 to 600 °C) |
| Temperature [IR] Max Resolution | ±2% of reading or ±4 °F/2 °C |
| Temperature [RTD] | 0.1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.0 × 4.7 × 1.7" (153 × 120 × 42mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 5.1oz (145g) |
Resources & Support
User Manual
Extech IR267 User Manual
Certification
Extech IR267 Declaration of Conformity
Datasheet
Extech IR267 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
